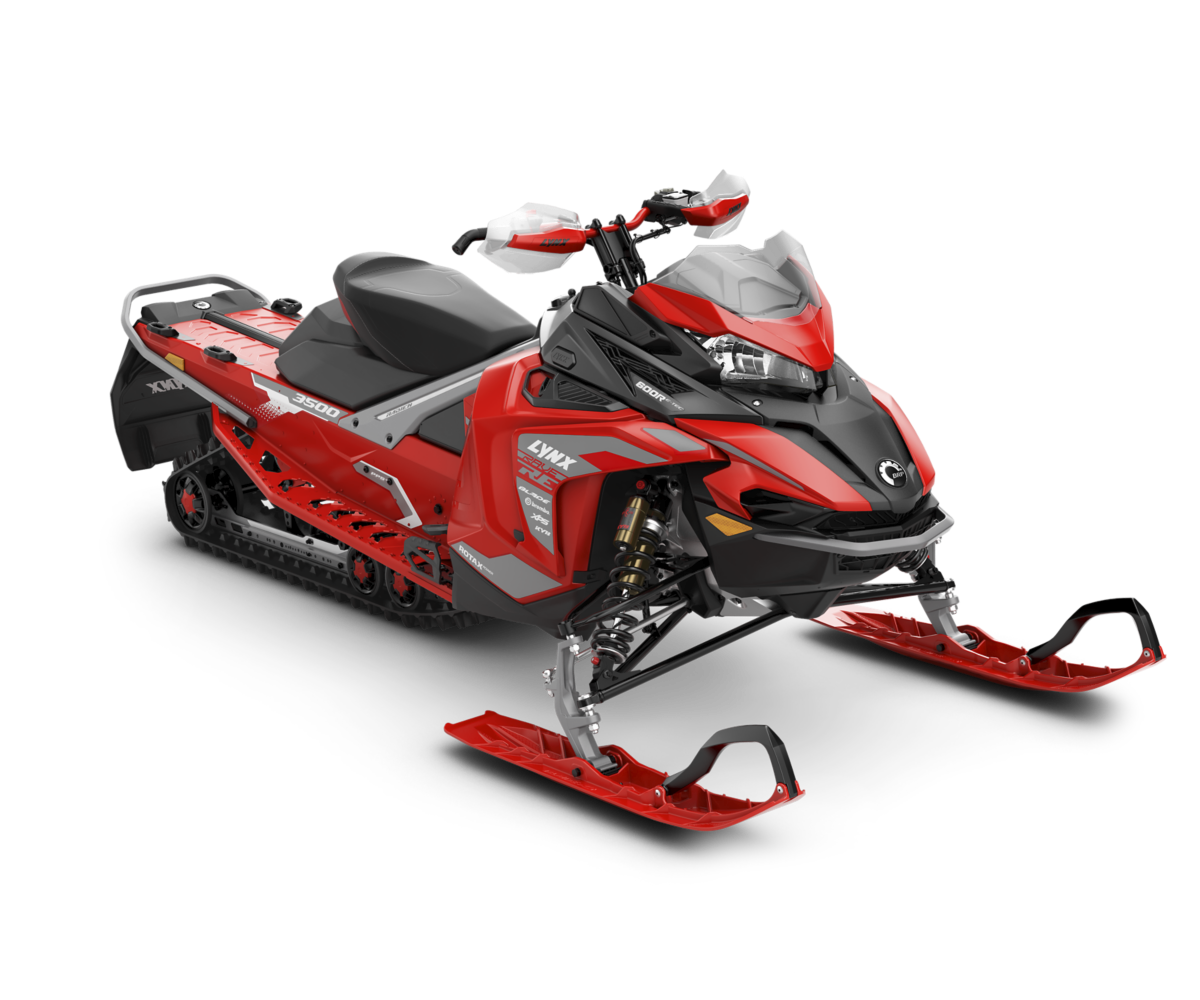

2023RAVE RE
-
Trail
- Rotax® 850 E-TEC and 600R E-TEC engines
- PPS³ rear suspension
- KYB 46 HLCR Kashima shocks
- 381 x 3 487 x 41 mm Cobra track
- 7.2-in. wide digital display
![/content/dam/global/en/lynx/my23/photos/vehicle-line-up/sport/studio-rave/rave-re/LYNX-MY23-Rave-RE-600R-E-TEC-Viper-Red-Studio-34FRT-RGB.png]()
![platinum-silver-satin---viper-red]()
For those who thrive when the trail gets fierce. The legendary reputation of the Lynx Rave RE is built to its riding characteristics. The key features are overwhelming suspension, rider friendly Radien design and powerful and responsive Rotax® 600R E-TEC and 850 E-TEC engines.
-
Engine
Rotax® 850 E-TEC, Rotax® 600R E-TEC
-
Rear suspension
PPS³ -3500 rear suspension, KYB 46 HLCR Kashima shocks
-
Front suspension
LFS+ front suspension, 1097 mm ski stance, KYB 46 HLCR Kashima shocks
-
Track
Cobra 381 x 3 487 x 41 mm
-
Special features
Low windshield, handguards, 7.2-in. wide digital display, Rave seat and Blade XC+ skis
Engine Engine - 600R E-TEC
850 E-TEC
Engine details - Liquid-cooled, two-stroke, 3-D R.A.V.E.™
Cylinders - 2
Cylinders & Displacement - 599.4 cc
849 cc
Bore - 72,3 mm
82 mm
Stroke - 73 mm
80.4 mm
Maximum engine speed - 8100 RPM
7900 RPM
Carburation - Electronic Direct Injection
Electronic Direct Injection with additional booster injectors
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 liters
Oil tank capacity (2-stroke) - 3.4 liters
Power Train Drive clutch type - pDrive™ with clickers
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Dimensions Vehicle Overall Length - 3040 mm
Vehicle Overall Width - 1270 mm
Vehicle Overall Height - 1210 mm
Ski Stance - 1097 mm
Track Length x Width x Profile - Cobra : 3487 x 381 x 41 mm
Ice Ripper XT : 3487 x 381 x 38 mm (spring option)
Suspensions Front suspension - LFS+
Front shock - KYB 46 HLCR Kashima
Rear suspension - PPS³ -3500
Center shock - KYB 46 HLCR Kashima
Rear shock - KYB 46 HLCR Kashima
Feature Frame - Radien
Skis - Blade XC+
Seating - Sport, 1-up
Handlebar - U-type aluminium with hooks
Riser block height - 90 mm
Starter - Manual
Manual Electric
Reverse - RER
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Windshield - Extra low
USB Power Outlet - Yes, in front compartment
-
-

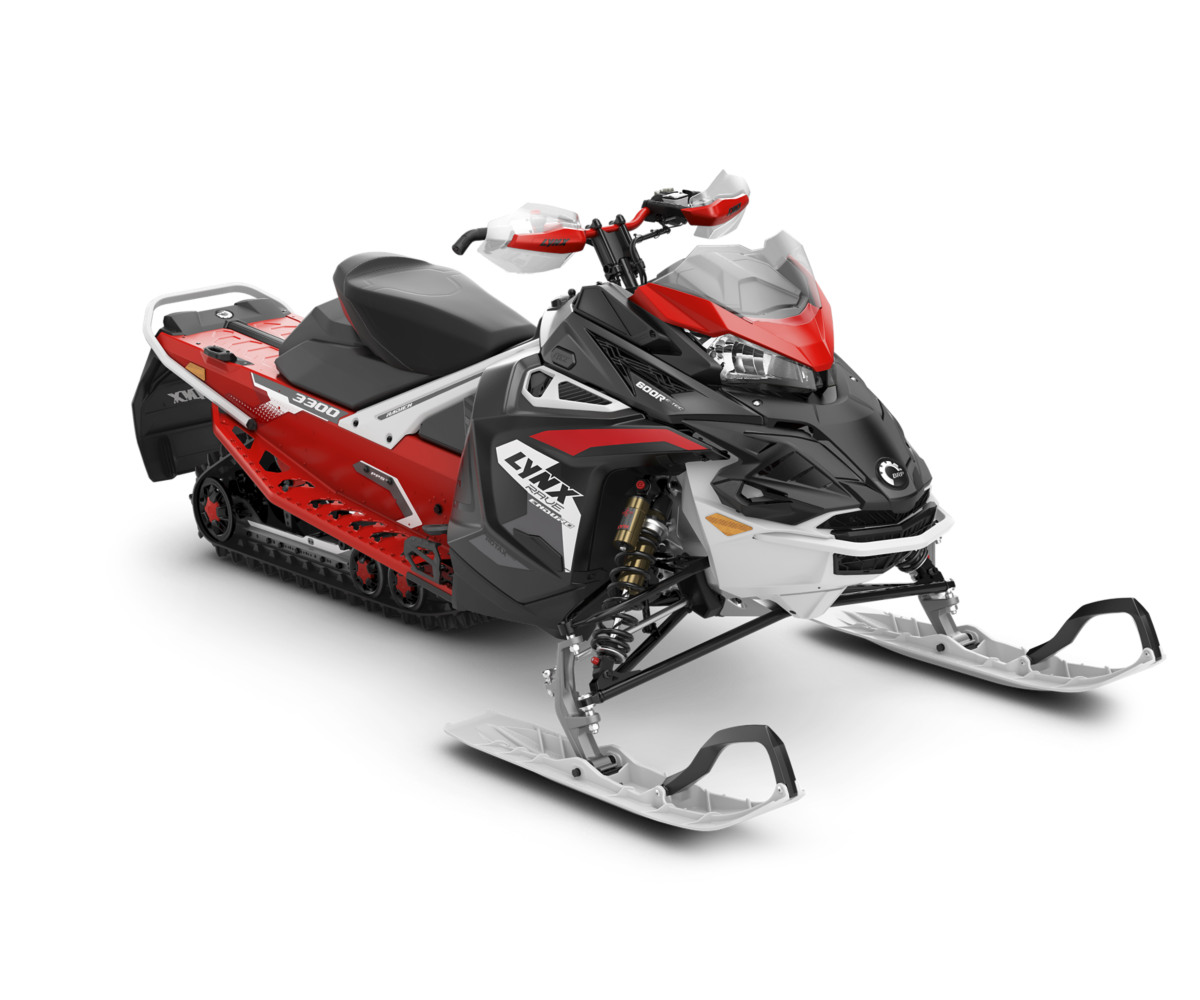

2023RAVE ENDURO
-
Trail
- Rotax® 600R E-TEC engine
- PPS³ rear suspension
- KYB 46 HLCR Kashima shocks
- 381 x 3 269 x 41 mm Cobra track
- 7.2-in. wide digital display, racing-type frame reinforcements, four-piston RS brake, aluminum throttle lever holder and slip-gear readiness
![/content/dam/global/en/lynx/my23/photos/vehicle-line-up/sport/studio-rave/rave-enduro/LYNX-MY23-Rave-Enduro-600R-E-TEC-Viper-Red-Studio-34FRT-RGB.png]()
![bright-white---viper-red]()
A specialist in cross country racing and fierce trails gets increased performance with the new PPS³ rear suspension. The winning combination is built on of race-ready details and reinforced structure. The speed is provided by the revolutionary Rotax® 600R E-TEC engine.
-
Engine
Rotax® 600R E-TEC
-
Rear suspension
PPS³ -3300 rear suspension, KYB 46 HLCR Kashima shocks
-
Front suspension
LFS+ front suspension, 1097 mm ski stance, KYB 46 HLCR Kashima shocks
-
Track
Cobra 381 x 3 269 x 41 mm
-
Special features
Low windshield, handguards, 7.2-in. wide digital display, Rave seat, Blade XC+ skis, racing-type frame reinforcements, four-piston RS brake, aluminum throttle lever holder and slip-gear readiness
Engine Engine - 600R E-TEC
Engine details - Liquid-cooled, two-stroke, 3-D R.A.V.E.™
Cylinders - 2
Cylinders & Displacement - 599.4 cc
Bore - 72,3 mm
Stroke - 73 mm
Maximum engine speed - 8100 RPM
Carburation - Electronic Direct Injection
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 liters
Oil tank capacity (2-stroke) - 3.4 liters
Power Train Drive clutch type - pDrive™ with clickers
Driven clutch type - QRS
Brake system - RS brake with 4 piston caliber, plastic master cylinder
Dimensions Vehicle Overall Length - 2930 mm
Vehicle Overall Width - 1250 mm
Vehicle Overall Height - 1260 mm
Ski Stance - 1097 mm
Track Length x Width x Profile - Cobra : 3269 x 381 x 41 mm
Suspensions Front suspension - LFS+
Front shock - KYB 46 HLCR Kashima
Rear suspension - PPS³-3300
Center shock - KYB 46 HLCR Kashima
Rear shock - KYB 46 HLCR Kashima
Feature Frame - Radien
Skis - Blade XC+
Seating - Sport, 1-up
Handlebar - U-type aluminium with hooks
Riser block height - 90 mm
Starter - Manual
Reverse - RER
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Windshield - Extra low
USB Power Outlet - Yes, in front compartment
-
