202369 RANGER
-
Heavy Duty Work
- Recreation Utility
- Deep snow
- On & Off Trail
- Rotax® 900 ACE™ engine
- EasyRide rear suspension
- HPG 36 shocks
- 600 x 3968 x 38 mm track
- Modular seat with heating
![white---orange---black]()
A versatile, wide track snowmobile for demanding tasks. The 600 x 3968 x 38 mm track and EasyRide-A rear suspension ensure superb traction and almost endless grip when hauling a load. Radien-X chassis takes the characteristics and the ride comfort to a new level.
-
Engine
Rotax® 900 ACE™
-
Rear suspension
EasyRide rear suspension, HPG 36 shocks
-
Front suspension
LFS front suspension (bended lower A-arms), 996 mm ski stance, HPG 36 shocks
-
Track
600 x 3968 x 38 mm
-
Special features
Multi-LinQ plate, hitch, Modular seat with heating, heavy-duty front bumper, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE™
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive™ with slider shoes
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Dimensions Vehicle Overall Length - 3240 mm
Vehicle Overall Width - 1200 mm
Vehicle Overall Height - 1500 mm
Ski Stance - 996 mm
Track Length x Width x Profile - Cobra : 3923 x 600 x 38 mm
Suspensions Front suspension - LFS with bended lower A-Arms
Front shock - HPG 36
Rear suspension - EasyRide
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - Compact Digital Display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
featuresUSBPowerOutlet - Front
-
-
202369 RANGER LIMITED
-
Heavy Duty Work
- Recreation Utility
- Deep snow
- On & Off Trail
- Rotax® 900 ACE™ Turbo and 900 ACE™ Turbo R engines
- EasyRide rear suspension
- HPG 36 shocks
- 600 x 3968 x 38 mm track
- 1+1 Modular seat, 70 L LinQ cargo box, shovel, 7.2-in. wide digital display
![white---orange---black]()
The 69 Ranger Limited is a unique combination of great flotation, high performance offered by Rotax® 900 ACE™ Turbo / 900 ACE™ Turbo R and generous standard equipment. Thanks to the modular 1+1 seat and large cargo space, this model is perfect for long distance winter adventures.
-
Engine
Rotax® 900 ACE™ Turbo, Rotax® 900 ACE™ Turbo R
-
Rear suspension
EasyRide rear suspension with adjustment HPG 36 shocks
-
Front suspension
LFS front suspension (bended lower A-arms) 996 mm ski stance HPG 36 shocks
-
Track
600 x 3968 x 38 mm
-
Special features
Multi-LinQ plate, hitch, 1+1 Modular seat, 70 L LinQ cargo box, shovel, heavy-duty front bumper, 7.2-in. wide digital display, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE™ Turbo
900 ACE™ Turbo R
Engine details - Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7750 RPM
7900 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive™
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Dimensions Vehicle Overall Length - 3240 mm
Vehicle Overall Width - 1200 mm
Vehicle Overall Height - 1500 mm
Ski Stance - 996 mm
Track Length x Width x Profile - Cobra : 3923 x 600 x 38 mm
Suspensions Front suspension - LFS with bended lower A-Arms
Front shock - HPG 36
Rear suspension - EasyRide with adjustment
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1+1
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
featuresUSBPowerOutlet - Front
-
-
-
On & Off Trail
- Family Fun
- Recreation Utility
- Heavy Duty Work
- Deep Snow
- Trail
- Rotax® 900 ACE™ Turbo R engine
- EasyRide rear suspension
- KYB 36 R and KYB 46 Kashima shocks
- 600 x 3968 x 38 mm track
- Luxury Modular 1+1 seat with heating, 7.2-in. wide digital display
![noble-bronze---black]()
A luxuriously equipped wide track snowmobile. Extravagant comfort. Vigorous performance. EasyRide-A rear suspension’s high-performance KYB Kashima 46 shock absorbers carry the load evenly. The riding pleasure is perfected by a super powerful Rotax® 900 ACE™ Turbo R four-stroke engine.
-
Engine
Rotax® 900 ACE™Turbo R
-
Rear suspension
EasyRide rear suspension with adjustment KYB 46 Kashima shocks
-
Front suspension
LFS front suspension 1080 mm ski stance KYB 36 R shocks
-
Track
600 x 3968 x 38 mm
-
Special features
Multi-LinQ plate, hitch, Luxury Modular 1+1 seat with heating, 7.2-in. wide digital display (7.8-in. large panoramic display available on spring models), air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE™ Turbo R
Engine details - Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7900 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive™
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Dimensions Vehicle Overall Length - 3250 mm
Vehicle Overall Width - 1280 mm
Vehicle Overall Height - 1500 mm
Ski Stance - 1080 mm
Track Length x Width x Profile - Cobra : 3923 x 600 x 38 mm
Suspensions Front suspension - LFS
Front shock - KYB 36 R
Rear suspension - EasyRide with adjustment
Center shock - KYB 46 Kashima
Rear shock - KYB 46 Kashima
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Luxury Modular 1+1 with heating
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
7.8-in. large panoramic wide LCD color display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front/Rear
featuresUSBPowerOutlet - Front
-
-

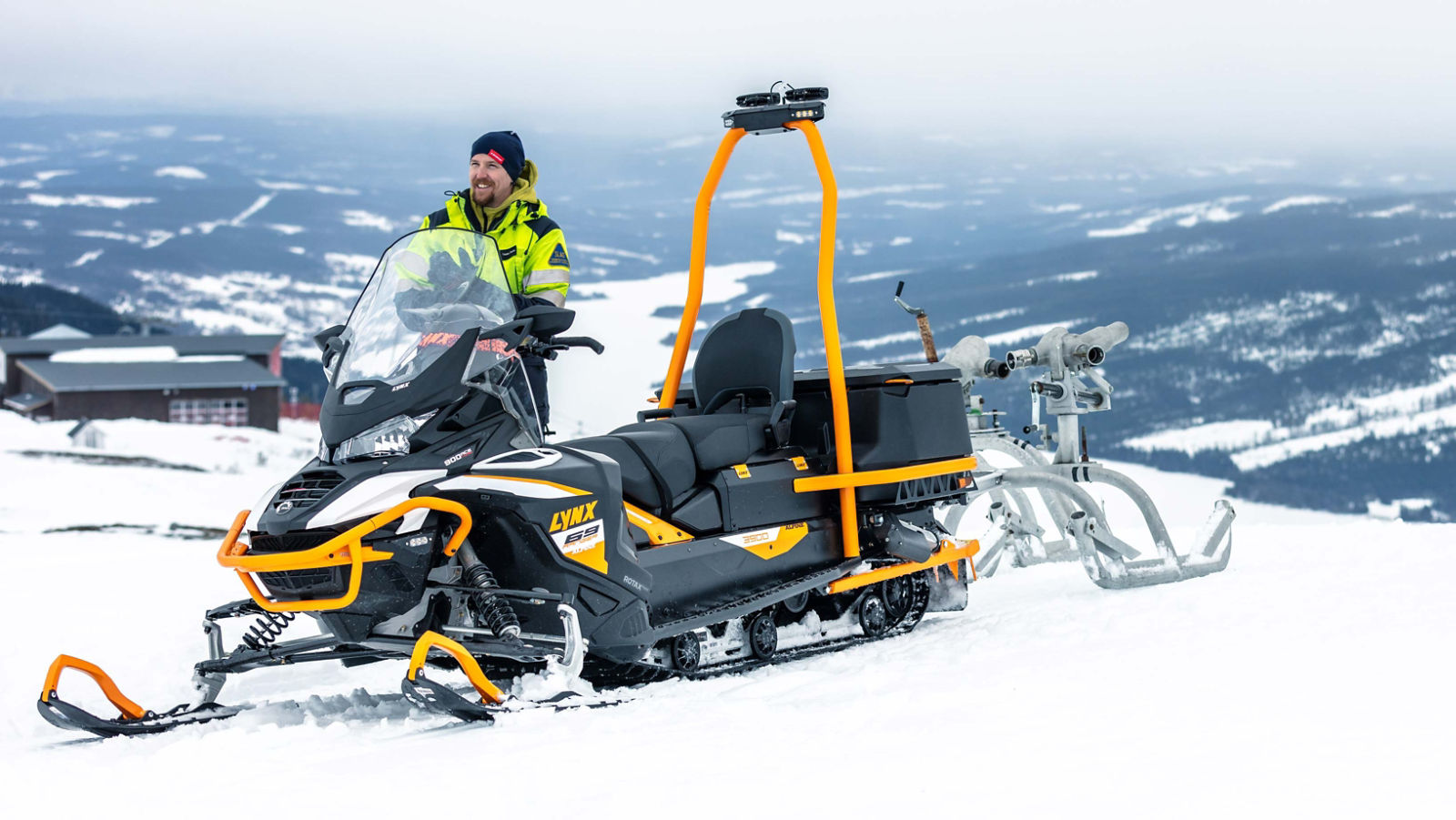

202369 RANGER ALPINE
-
Heavy Duty Work
- Recreation Utility
- On & Off Trail
- Trail
- Rotax® 900 ACE™ Turbo engine
- EasyRide rear suspension
- HPG 36 shocks
- 600 x 3968 x 32 mm studded track
- Modular seat with heating, 7.2-in. wide digital display, readiness for Alpine accessories
![white---orange---black]()
A factory-ready heavy-duty snowmobile for ski resorts and other demanding utility use. The power of Rotax® 900 ACE™ Turbo engine is transmitted to the super wide track even in high altitude. The EasyRide Alpine rear suspension and generous standard equipment perfect the strong utility features.
-
Engine
Rotax® 900 ACE™ Turbo
-
Rear suspension
EasyRide rear suspension HPG 36 shocks
-
Front suspension
LFS front suspension 1080 mm ski stance HPG 36 shocks
-
Track
600 x 3968 x 32 mm studded
-
Special features
Rear rack, hitch, Modular seat with heating, heavy-duty front bumper, 7.2-in. wide digital display, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis, iTC system with three driving modes and readiness for Alpine accessories
Engine Engine - 900 ACE™ Turbo
Engine details - Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7750 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive™
Driven clutch type - QRS
Brake system - RS brake with 4 piston caliber, plastic master cylinder
Dimensions Vehicle Overall Length - 3240 mm
Vehicle Overall Width - 1280 mm
Vehicle Overall Height - 1470 mm
Ski Stance - 1080 mm
Track Length x Width x Profile - Ice Ripper (nastamatto) : 3968 x 600 x 32 mm
Suspensions Front suspension - LFS
Front shock - HPG 36
Rear suspension - EasyRide Alpine
Center shock - HPG 36
Rear shock - 2 x HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
featuresUSBPowerOutlet - Yes, in front compartment
-
Download spec sheet
