Snowmobile Displays

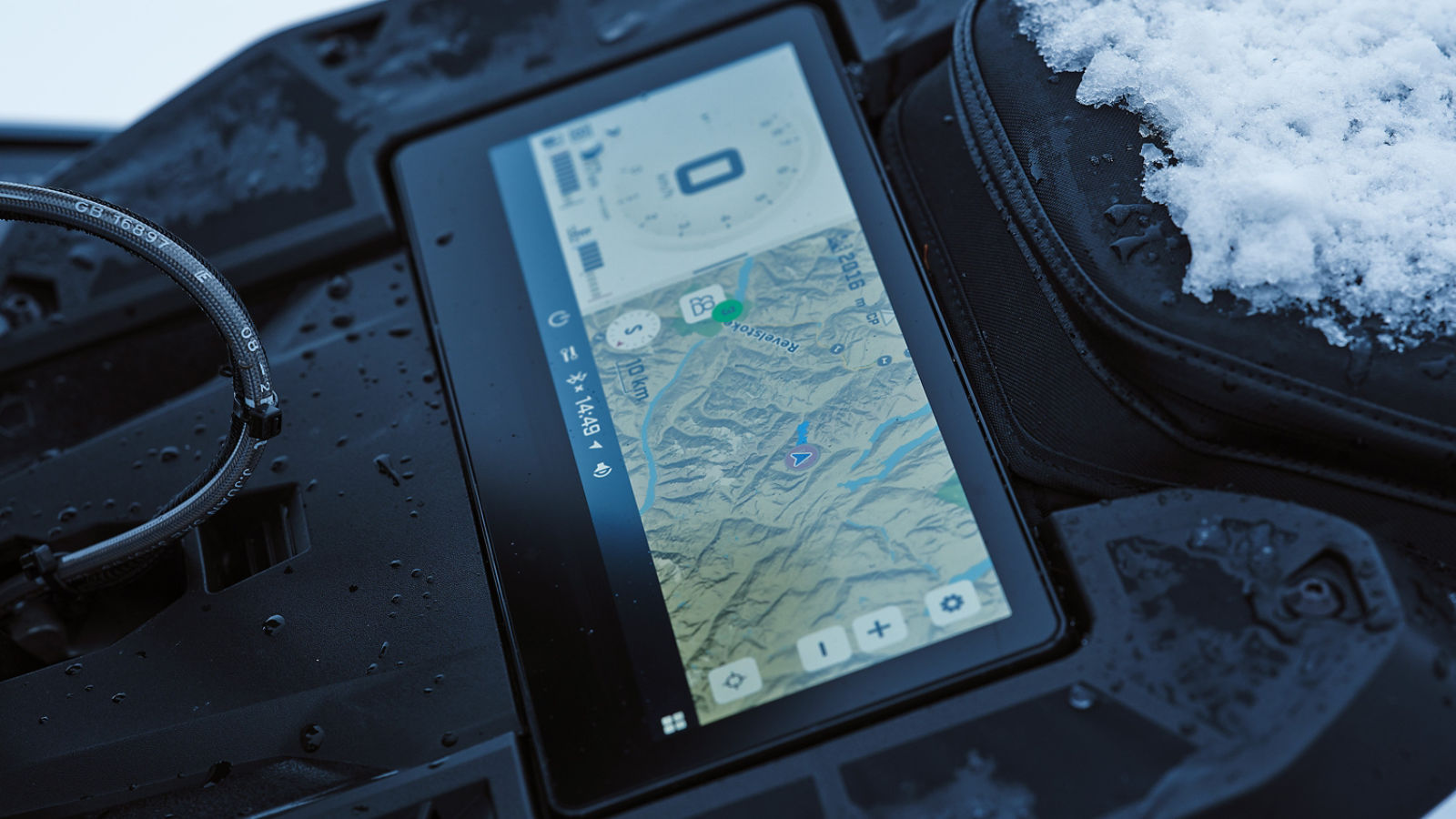

10.25" touchscreen display on Lynx Shredder snowmobile

Clear visibility

PREMIUM INTEGRATION

The large 10.25" Touchscreen Display provides clear visibility from every angle, under any lighting conditions. It accomplishes this within a perfectly integrated design that seamlessly blends with the sled.

Left hand control module of 10,25'' display in Lynx Rave RE snowmobile

Instinctive

EASE OF USE

Tailor split screen displays effortlessly with a simple swipe. The cleverly crafted left-hand control module enables intuitive navigation through the display screen, allowing you to find your preferred layout and desired information.

Connecting phone to the 2024 Lynx Rave RE 10,25 inch touchscreen

FAST AND EASY

FIRST-CLASS CONNECTIVITY

Experience lightning-fast and hassle-free Bluetooth pairing. Elevate your ride with the intuitive navigation of the BRP GO! App. Stay updated with convenient software updates via WiFi, all from the comfort of your home.

Explore Display's Key features

Clear riding metrics

MASSIVE FULL-COLOR INFORMATION CENTER

A big-screen view of sled vitals like speed, RPM, fuel, odometer and more. Customizable viewing options include the ability to show Smart Shox suspension setting*, engine temp, CVT temp, and more, at the center of the screen.

*On equipped models

Applet Menu

EASY TOUCH-SCREEN CONTROL

Your sled's version of a homescreen. The applet menu provides touch-screen navigation between your favorite applets. Control media, navigation, phone, vehicle settings and info, ride statistics and other preferences with the touch of your finger.

GPS navigation

No cell service required

Access navigation features without connecting your phone to your Lynx snowmobile. Use topographic maps, official snowmobile trails (where supported), and more. For additional features, like turn-by-turn directions, simply connect your phone and use the free BRP GO! App.

Learn more about BRP GO!

Manage Your Music

SONGS AND MORE

Simply pair your phone and headset to listen to your favorite music while riding. Easily manage it all, including volume and track selection, within the applet on your touchscreen.

Take Calls from your Sled

COMMUNICATION WITH YOUR CREW AT ITS BEST

With your phone and headset paired with the 10.25" touchscreen display, you can make and receive phone calls from the seat of your sled. You'll also have access to call history and can even use voice commands to control it all hands free.

Ride Stats

VIEW KEY STATISTICS FROM EVERY RIDE

Keep track of key driving stats on your current ride or between Trip A/B. Stats available include trip distance, elapsed time, average speed and average fuel consumption.

Heated grip control

SET YOUR PREFERRED HANDLEBAR HEAT

Dial in comfort for your hands. The controls applet lets you set your heated handlebar grips and throttle thumb heat. Gives riders full control over heat intensity and ratio between handlebar and thumb.

Manage your preferences

CUSTOMIZE YOUR DISPLAY TO YOUR NEEDS

A full array of connectivity at your fingertips. Quickly and easily connect Bluetooth devices, download available software updates with over-the-air WiFi connection at home and customize your Applet Switcher settings and Ride settings functions for fast access to your most frequently used features.*

*Available for trail models only

10.25" Touchscreen Display available on:

2027

SHREDDER RE

Steep and deep
Deep snow

Rotax® 850 E-TEC and 850 E-TEC Turbo R engines
PPS³ DS rear / LFS-DS front suspension
KYB PRO 40 EA-3 Kashima / KYB 46 Plus Kashima / KYB PRO 46 EA-3 R Kashima shocks
64 mm PowderMax† track (3700 850 engine) / 76 mm PowderMax X-Light track (3900 and 3700 850 Turbo)
Premium LED headlights, 4,5" Digital Display or 10.25" Touchscreen Display, rail reinforcements, adjustable brake lever, SHOT starter, Black color (spring only on Turbo models), electric starter (spring only on 3700 850 engine)

SHREDDER RE

The Shredder RE is unmatched in its agility and fun, thanks to its new narrower ski stance, tapered tunnel, and deep-snow-optimized suspension. Top-quality KYB PRO Kashima shock absorbers enhance performance in aggressive riding. Raw power is guaranteed by Rotax® 850 E-TEC / 850 E-TEC Turbo R engines.

/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-Shredder-RE-3900-850-E-TEC-Turbo-R-Black-Studio-34FRT-GLOBAL.png

Engine

Rotax® 850 E-TEC, Rotax® 850 E-TEC Turbo R
Rear suspension

PPS³ DS, KYB 46 Plus Kashima & KYB PRO 46 EA-3 Kashima shocks
Front suspension

LFS-DS, 863 mm ski stance, KYB PRO 40 EA-3 Kashima shocks
Track

PowderMax† 381 x 3705 x 64 mm / PowderMax X-Light 381 x 3734 x 76 mm / 381 x 3912 x 76 mm
Special features

Premium LED headlights, 90 mm riser, 4,5" Digital Display or 10.25" Touchscreen Display, adjustable KYB shocks, rail reinforcements, adjustable brake lever, SHOT starter, Black color (spring only on Turbo models), electric starter (spring only on 3700 850 engine)

Download spec sheet

Engine
Engine	850 E-TEC 850 E-TEC Turbo R
Engine details	850 E-TEC® : Liquid-cooled, two-stroke, 3-D R.A.V.E.™ 850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, 3-D R.A.V.E.™
Cylinders	2
Cylinders & Displacement	849 cc
Bore	82 mm
Stroke	80.4 mm
Maximum engine speed	7,900 RPM
Carburation	Electronic Direct Injection with additional booster injectors
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	37 L
Oil tank capacity (2-stroke)	3,4 L

Power Train
Drive clutch type	850 E-TEC® : pDrive™ with clickers 850 E-TEC® Turbo R : pDrive™ with clickers
Driven clutch type	QRS
Brake system	Brembo with adjustable lever

Dimensions
Vehicle Overall Length	3080 mm (3700 850) 3095 mm (3700 850 Turbo R) 3200 mm (3900)
Vehicle Overall Width	1031 mm
Vehicle Overall Height	1240 mm
Ski Stance	863 mm
Track Length x Width x Profile	PowderMax†: 3705 x 381 x 64 (3700 850) PowderMax† X-Light: 3734 x 381 x 76 (3700 850 Turbo R) 3912 x 381 x 76

Suspensions
Front suspension	LFS-DS
Front shock	KYB PRO 40 EA-3 Kashima
Rear suspension	PPS³-DS
Center shock	KYB 46 Plus Kashima
Rear shock	KYB PRO 46 EA-3 R Kashima

Feature
Frame	Radien²
Skis	Blade DSS
Seating	Deep snow ultra compact
Handlebar	U-type aluminium with hooks, low grab handle
Riser block height	90 mm
Starter	SHOT Electric and manual (spring only on 3700 850 E-TEC)
Reverse	RER™
Heated throttle lever	Standard
Heated grips	Standard
Gauge	850 E-TEC® : 4.5 in. Digital Display or 10.25 in. Touchscreen Display 850 E-TEC® Turbo R : 10.25 in. Touchscreen Display
12V power outlet	Yes, in front compartment

2027

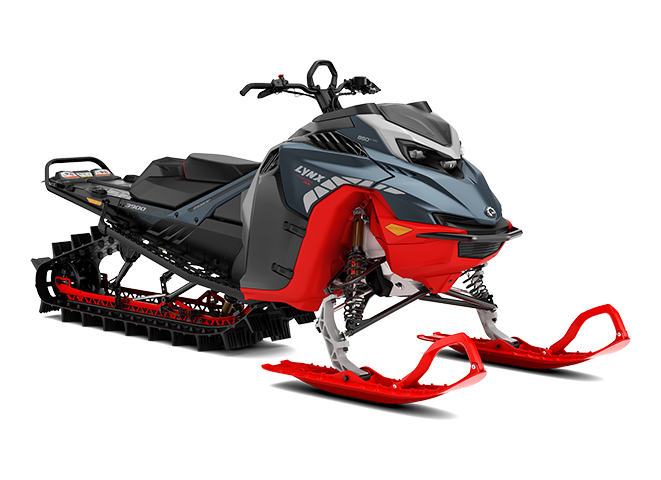

SHREDDER DS

Steep and deep
Deep snow

Rotax® 850 E-TEC and 850 E-TEC Turbo R engines
PPS³ DS rear / LFS-DS front suspension
KYB 36 Plus Kashima shocks
76 mm PowderMax X-Light track
Premium LED headlights, 4,5" Digital Display or 10.25" Touchscreen Display, adjustable brake lever, SHOT starter, Black color (spring only on 3900 Turbo model)

SHREDDER DS

Shredder DS is the machine for the deepest snow and the gnarliest treelines. Tapered tunnel, PPS³ DS rear suspesion and LFS-DS front suspension improve deep snow performance and handling. The Blade DSS ski with deep snow optimized steering system enhance agility and precision.

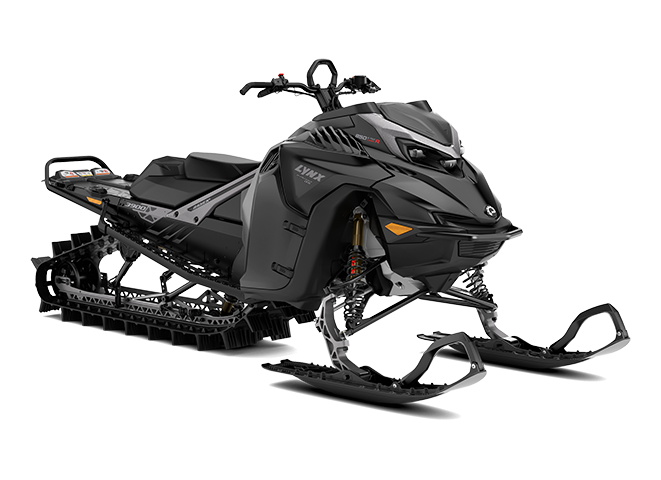

/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-Shredder-DS-3900-850-E-TEC-Turbo-R-Black-Studio-34FRT-GLOBAL.png

Engine

Rotax® 850 E-TEC, Rotax® 850 E-TEC Turbo R
Rear suspension

PPS³ DS, KYB 36 Plus Kashima shocks
Front suspension

LFS-DS, 863 mm ski stance, KYB 36 Plus Kashima shocks
Track

PowderMax X-Light 381 x 3912 x 76 mm / 381 x 4178 x 76 mm (spring only)
Special features

Premium LED headlights, 90 mm riser, 4,5" Digital Display or 10.25" Touchscreen Display, adjustable brake lever, SHOT starter, Black color (spring only on 3900 Turbo models)

Download spec sheet

Engine
Engine	850 E-TEC 850 E-TEC Turbo R
Engine details	850 E-TEC® : Liquid-cooled, two-stroke, 3-D R.A.V.E.™ 850 E-TEC® Turbo R : Liquid-cooled, two-stroke, turbocharged, 3-D R.A.V.E.™
Cylinders	2
Cylinders & Displacement	849 cc
Bore	82 mm
Stroke	80.4 mm
Maximum engine speed	7,900 RPM
Carburation	Electronic Direct Injection with additional booster injectors
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	37 L
Oil tank capacity (2-stroke)	3,4 L

Power Train
Drive clutch type	850 E-TEC® : pDrive™ with clickers 850 E-TEC® Turbo R : pDrive™ with clickers
Driven clutch type	QRS
Brake system	Brembo with adjustable lever

Dimensions
Vehicle Overall Length	3200 mm (3900) 3335 mm (4100)
Vehicle Overall Width	1031 mm
Vehicle Overall Height	1240 mm
Ski Stance	863 mm
Track Length x Width x Profile	PowderMax† X-Light: 3912 x 381 x 76 mm 4178 x 381 x 76 mm (spring only)

Suspensions
Front suspension	LFS-DS
Front shock	KYB 36 Plus Kashima
Rear suspension	PPS³-DS
Center shock	KYB 36 Plus Kashima
Rear shock	KYB 36 Plus Kashima

Feature
Frame	Radien²
Skis	Blade DSS
Seating	Deep snow ultra compact
Handlebar	U-type aluminium with hooks, low grab handle
Riser block height	90 mm
Starter	SHOT
Reverse	RER™
Heated throttle lever	Standard
Heated grips	Standard
Gauge	850 E-TEC® : 4.5 in. Digital Display or 10.25 in. Touchscreen Display 850 E-TEC® Turbo R : 10.25 in. Touchscreen Display
12V power outlet	Yes, in front compartment

2027

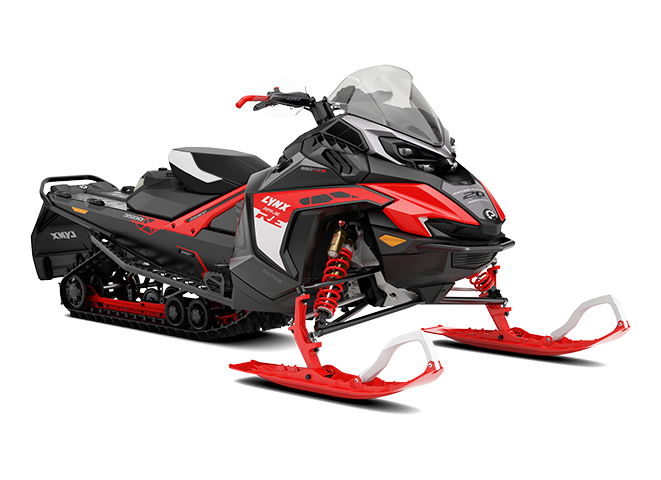

RAVE RE

Trail

Rotax® 850 E-TEC Turbo R, 850 E-TEC and 600RR E-TEC engines
PPS³ rear / LFS-R front suspension
KYB PRO 46 HLCR Kashima shocks
41 mm Cobra track (600RR) / 38 mm Ice Ripper XT studded track (on 850 and 850 Turbo)
Silent-Stop and Smart ECO mode (silent-stop only 600RR with e-start), Premium LED headlights, 7.2" Digital Display or 10.25" Touchscreen Display, four-piston brake and adjustable brake lever, Black color (spring only on Turbo)

RAVE RE

The Rave RE is a purebred sports snowmobile featuring a unique PPS³/LFS-R suspension with fully adjustable KYB PRO shock absorbers. Rotax® E-TEC engines deliver sharp throttle response and massive power. Now available with a 3300 mm track length (formerly the Rave Enduro package). A special coloring celebrates the 20-year journey of the trail legend.

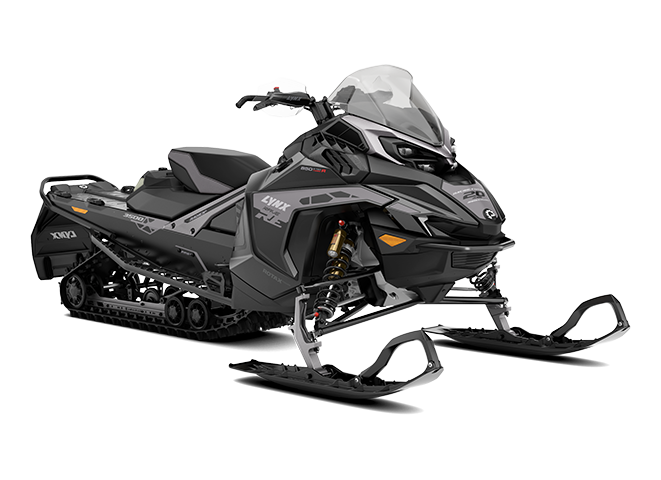

/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-Rave-RE-3500-850-E-TEC-Turbo-R-Black-Studio-34FRT-GLOBAL.png

Engine

Rotax® 850 E-TEC Turbo R, Rotax® 850 E-TEC, Rotax® 600RR E-TEC
Rear suspension

PPS³, KYB PRO 46 HLCR Kashima shocks
Front suspension

LFS-R, 1097 mm ski stance, KYB PRO 46 HLCR Kashima shocks
Track

Cobra 381 x 3 269 x 41 mm or 381 x 3 487 x 41 mm (600RR) / Ice Ripper XT studded 381 x 3 487 x 38 mm (on 850 and 850 Turbo)
Special features

Silent-Stop and Smart ECO mode (silent-stop only 600RR with e-start), Premium LED headlights, four-piston brake, adjustable brake lever, 7.2" Digital Display or 10.25" Touchscreen Display, SHOT starter on 850 Turbo R, Black color (spring only on Turbo)

Download spec sheet

Engine
Engine	850 E-TEC Turbo R with WIS 600RR E-TEC
Engine details	600RR E-TEC® : Liquid-cooled, two-stroke, 3-D RAVE™ 850 E-TEC® : Liquid-cooled, two-stroke, 3-D R.A.V.E.™ 850 E-TEC® Turbo R with WIS : Liquid-cooled, two-stroke, turbocharged, water injection system, 3-D R.A.V.E.™
Cylinders	600RR E-TEC® : 2 850 E-TEC® : 2 850 E-TEC® Turbo R with WIS : 2
Cylinders & Displacement	600RR E-TEC® : 599.4 cc 850 E-TEC® : 849 cc 850 E-TEC® Turbo R with WIS : 849 cc
Bore	600RR E-TEC® : 72.3 mm 850 E-TEC® : 82 mm 850 E-TEC® Turbo R with WIS : 82 mm
Stroke	600RR E-TEC® : 73 mm 850 E-TEC® : 80.4 mm 850 E-TEC® Turbo R with WIS : 80.4 mm
Maximum engine speed	600RR E-TEC® : 8,250 RPM 850 E-TEC® : 7,900 RPM 850 E-TEC® Turbo R with WIS : 7,900 RPM
Carburation	600RR E-TEC® : Electronic Direct injection with additional booster injectors 850 E-TEC® : Electronic Direct Injection with additional booster injectors 850 E-TEC® Turbo R with WIS : Electronic Direct Injection with additional booster injectors
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	37 L
Oil tank capacity (2-stroke)	3,4 L

Power Train
Drive clutch type	600RR E-TEC® : pDrive™ with clickers 850 E-TEC® : pDrive™ with clickers 850 E-TEC® Turbo R with WIS : pDrive™ with clickers
Driven clutch type	QRS
Brake system	Brembo 4-Piston with adjustable lever

Dimensions
Vehicle Overall Length	2920 mm (3300) 3040 mm (3500)
Vehicle Overall Width	1270 mm
Vehicle Overall Height	1140 mm
Ski Stance	1097 mm
Track Length x Width x Profile	Cobra: 3269 x 381 x 41 mm (600RR) 3487 x 381 x 41 mm (600RR) Ice Ripper XT studded: 3487 x 381 x 38 mm (on 850 and 850 Turbo)

Suspensions
Front suspension	LFS-R
Front shock	KYB PRO 46 HLCR Kashima
Rear suspension	PPS³
Center shock	KYB PRO 46 HLCR Kashima
Rear shock	KYB PRO 46 HLCR Kashima

Feature
Frame	Radien²
Skis	Blade XC+
Seating	Sport, 1-up
Handlebar	U-type aluminium with hooks
Riser block height	90 mm
Starter	SHOT (850 E-TEC Turbo R) Electric and manual (850 E-TEC & option on 600RR E-TEC) Manual (option on 600RR E-TEC)
Reverse	RER™
Heated throttle lever	Standard
Heated grips	Standard
Gauge	600RR E-TEC® : 7.2 in. Digital Display or 10.25 in. Touchscreen Display 850 E-TEC® : 10.25 in. Touchscreen Display 850 E-TEC® Turbo R with WIS : 10.25 in. Touchscreen Display
Windshield	Low
Visor Plug front / rear	Front
12V power outlet	Yes, in front compartment

2027

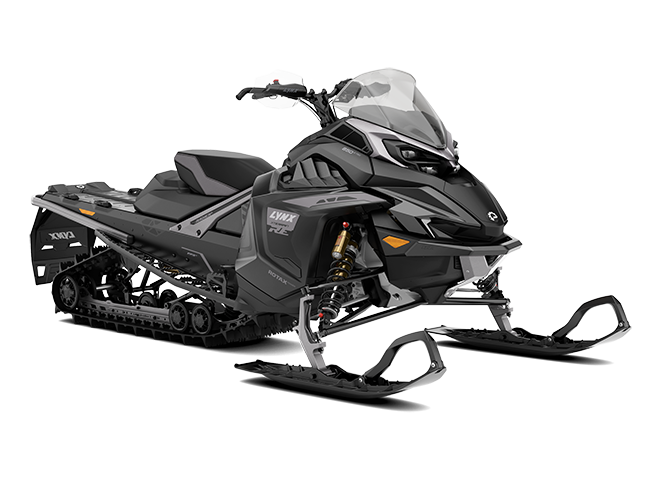

XTERRAIN RE

On & Off Trail
Trail

Rotax® 850 E-TEC Turbo R, 850 E-TEC and 900 ACE Turbo R engines
PPS³ rear / LFS-R front suspension
KYB PRO 46 HLCR Kashima shocks
51 mm PowderMax† track
Premium LED headlights, 10.25" Touchscreen Display, heated seat

XTERRAIN RE

The extreme crossover for long journeys. The new LFS-R front suspension, combined with the PPS³ rear suspension and top-quality KYB PRO 46 HLCR Kashima shock absorbers, tames even the most demanding terrain. The power of Rotax® engines satisfy even the most extreme thrill seekers.

Engine

Rotax® 850 E-TEC Turbo R,Rotax® 850 E-TEC,Rotax® 900 ACE Turbo R
Rear suspension

PPS³,KYB PRO 46 HLCR Kashima shocks
Front suspension

LFS-R,1097 mm ski stance,KYB PRO 46 HLCR Kashima shocks
Track

PowderMax† 381 x 3 705 x 51 mm
Special features

Premium LED headlights, four-piston brake, adjustable brake lever, handguards, 10.25" Touchscreen Display, Heated seat, Explorer² Front Bumper, heavy-duty rear bumper, SHOT starter on 850 Turbo R

Download spec sheet

Engine
Engine	850 E-TEC 850 E-TEC Turbo R with WIS 900 ACE Turbo R
Engine details	850 E-TEC® : Liquid-cooled, two-stroke, 3-D R.A.V.E.™ 850 E-TEC® Turbo R with WIS : Liquid-cooled, two-stroke, turbocharged, water injection system, 3-D R.A.V.E.™ 900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders	850 E-TEC® : 2 850 E-TEC® Turbo R with WIS : 2 900 ACE™ Turbo R : 3
Cylinders & Displacement	850 E-TEC® : 849 cc 850 E-TEC® Turbo R with WIS : 849 cc 900 ACE™ Turbo R : 899 cc
Bore	850 E-TEC® : 82 mm 850 E-TEC® Turbo R with WIS : 82 mm 900 ACE™ Turbo R : 74 mm
Stroke	850 E-TEC® : 80.4 mm 850 E-TEC® Turbo R with WIS : 80.4 mm 900 ACE™ Turbo R : 69.7 mm
Maximum engine speed	7,900 RPM
Carburation	850 E-TEC® : Electronic Direct Injection with additional booster injectors 850 E-TEC® Turbo R with WIS : Electronic Direct Injection with additional booster injectors 900 ACE™ Turbo R : EFI
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	37 L
Oil tank capacity (2-stroke)	3,4 L

Power Train
Drive clutch type	850 E-TEC® : pDrive™ with clickers 850 E-TEC® Turbo R with WIS : pDrive™ with clickers 900 ACE™ Turbo R : pDrive™
Driven clutch type	QRS
Brake system	Brembo 4-Piston with adjustable lever

Dimensions
Vehicle Overall Length	3180 mm
Vehicle Overall Width	1270 mm
Vehicle Overall Height	1300 mm
Ski Stance	1097 mm
Track Length x Width x Profile	PowderMax†: 3705 x 381 x 51 mm

Suspensions
Front suspension	LFS-R
Front shock	KYB PRO 46 HLCR Kashima
Rear suspension	PPS³
Center shock	KYB PRO 46 HLCR Kashima
Rear shock	KYB PRO 46 HLCR Kashima

Feature
Frame	Radien²
Skis	Blade XC+
Seating	Sport, 1-up heated
Handlebar	U-type aluminium with hooks
Riser block height	120 mm
Starter	SHOT (850 E-TEC Turbo R) Electric (900 ACE Turbo R) Electric and manual (850 E-TEC)
Reverse	Electromechanical (900 ACE Turbo R) RER™ (850 & 850 E-TEC Turbo R)
Heated throttle lever	Standard
Heated grips	Standard
Gauge	10.25 in. Touchscreen Display
Windshield	Low
Visor Plug front / rear	Front
12V power outlet	Yes, in front compartment

2027

XTERRAIN LIMITED

Trail
Trail
Family Fun

Rotax® 600RR E-TEC and 900 ACE Turbo engines
PPS³ rear / LFS-R front suspension
KYB 36 Plus R, KYB 36 Plus and KYB 46 Plus Kashima shocks
51 mm PowderMax† track
Silent-Stop and Smart ECO mode (600RR), Premium LED headlights, Heated seat, 7.2" Digital Display (600RR) or 10.25" Touchscreen Display (900 ACE Turbo)

XTERRAIN LIMITED

High-performance crossover snowmobile for adventurous weekend getaways. High-quality KYB Plus shock absorbers smooth out even the roughest wilderness trails. Powerful and fuel-efficient Rotax® 600RR E-TEC / 900 ACE Turbo engines guarantee performance. The optional Touring Kit converts the Xterrain Limited into a two-person touring sled.

Engine

Rotax® 600RR E-TEC,Rotax® 900 ACE Turbo
Rear suspension

PPS³,KYB 36 Plus & KYB 46 Plus Kashima shocks
Front suspension

LFS-R,1097 mm ski stance,KYB 36 Plus R shocks
Track

PowderMax† 381 x 3 705 x 51 mm
Special features

Silent-Stop and Smart ECO mode (600RR), Premium LED headlights, 7.2" Digital Display (600RR) or 10.25" Touchscreen Display (900 ACE Turbo), Explorer² Front Bumper, Heavy-duty rear bumper, Heated seat, optional touring kit on 900 ACE Turbo (2-up heated seat, high windshield and air radiator with fan)

Download spec sheet

Engine
Engine	600RR E-TEC 900 ACE Turbo
Engine details	600RR E-TEC® : Liquid-cooled, two-stroke, 3-D RAVE™ 900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders	600RR E-TEC® : 2 900 ACE™ Turbo : 3
Cylinders & Displacement	600RR E-TEC® : 599.4 cc 900 ACE™ Turbo : 899 cc
Bore	600RR E-TEC® : 72.3 mm 900 ACE™ Turbo : 74 mm
Stroke	600RR E-TEC® : 73 mm 900 ACE™ Turbo : 69.7 mm
Maximum engine speed	600RR E-TEC® : 8,250 RPM 900 ACE™ Turbo : 7,750 RPM
Carburation	600RR E-TEC® : Electronic Direct injection with additional booster injectors 900 ACE™ Turbo : EFI
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	37 L
Oil tank capacity (2-stroke)	3,4 L

Power Train
Drive clutch type	600RR E-TEC® : pDrive™ with clickers 900 ACE™ Turbo : pDrive™
Driven clutch type	QRS
Brake system	Brembo

Dimensions
Vehicle Overall Length	3180 mm
Vehicle Overall Width	1270 mm
Vehicle Overall Height	1320 mm
Ski Stance	1097 mm
Track Length x Width x Profile	PowderMax†: 3705 x 381 x 51 mm

Suspensions
Front suspension	LFS-R
Front shock	KYB 36 Plus R
Rear suspension	PPS³
Center shock	KYB 36 Plus Kashima
Rear shock	KYB 36 Plus Kashima

Feature
Frame	Radien²
Skis	Blade XC+
Seating	Sport, 1-up or 2-up heated
Handlebar	U-type aluminium with hooks
Riser block height	120 mm
Starter	Electric and manual (600RR E-TEC) Electric (900 ACE Turbo)
Reverse	RER™ (600RR E-TEC) Electromechanical (900 ACE Turbo)
Heated throttle lever	Standard (driver and passenger)
Heated grips	Standard (driver and passenger)
Gauge	600RR E-TEC® : 7.2 in. Digital Display 900 ACE™ Turbo : 10.25 in. Touchscreen Display
Windshield	Low Ultra-high with side deflectors (Touring kit)
Visor Plug front / rear	Front Front and rear (Touring kit)
12V power outlet	Yes, in front compartment

2027

BRUTAL RE

Deep snow
Steep and deep
On & Off Trail

Rotax® 850 E-TEC and 900 ACE Turbo R engines
PPS² DS+ rear suspension
KYB PRO 36 EA-3 R Kashima, KYB 46 Plus Kashima and KYB PRO 46 EA-3 R Kashima shocks
64 mm PowderMax† track
Premium LED headlights, 10.25" Touchscreen Display, air radiator with fan, Black color (spring only on Turbo models)

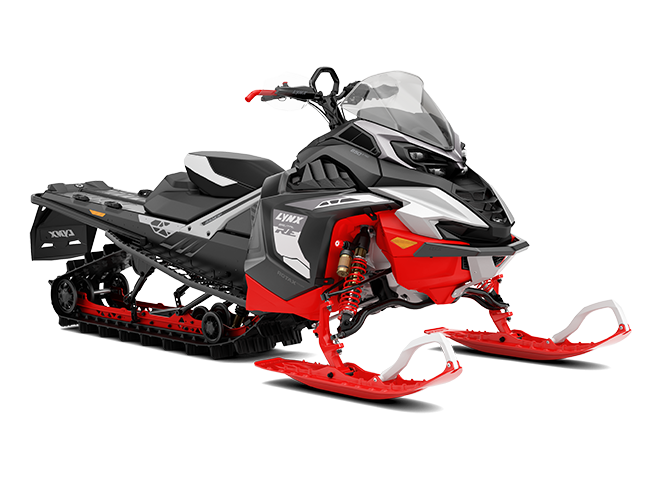

BRUTAL RE

Brutal RE is an extreme crossover snowmobile blending fierce power of Rotax® 900 ACE Turbo R / 850 E-TEC engine with great deep snow performance and agility. PPS² DS+ rear suspension with high-profile track and KYB Kashima shocks ensure on & off trail aptitude with virtually limitless grip.

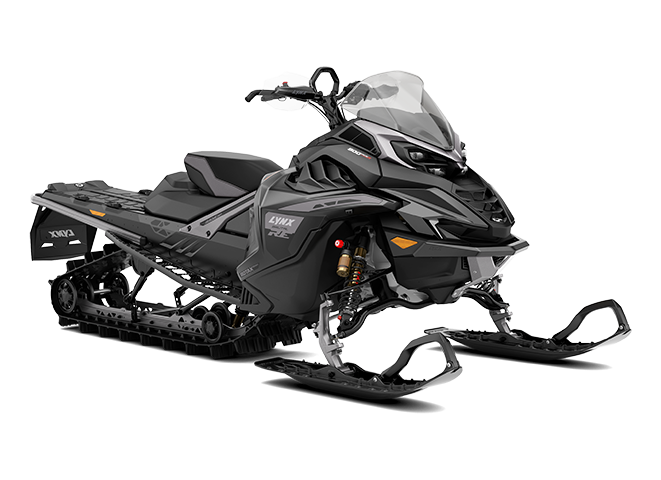

/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-Brutal-RE-400mm-900-ACE-Turbo-R-Black-Studio-34FRT-GLOBAL.png

Engine

Rotax® 850 E-TEC,Rotax® 900 ACE Turbo R
Rear suspension

PPS² DS+,KYB 46 Plus Kashima and KYB PRO 46 EA-3 R Kashima shocks
Front suspension

LFS+ (arched lower A-arms),996 mm ski stance,KYB PRO 36 EA-3 R Kashima shocks
Track

PowderMax 381 x 3923 x 64 mm
Special features

Premium LED headlights, four-piston brake, adjustable brake lever, 10.25" Touchscreen Display, Explorer² Front Bumper, Heavy-duty rear bumper, air radiator with fan, Black color (spring only on Turbo models)

Download spec sheet

Engine
Engine	850 E-TEC 900 ACE Turbo R
Engine details	850 E-TEC® : Liquid-cooled, two-stroke, 3-D R.A.V.E.™ 900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders	850 E-TEC® : 2 900 ACE™ Turbo R : 3
Cylinders & Displacement	850 E-TEC® : 849 cc 900 ACE™ Turbo R : 899 cc
Bore	850 E-TEC® : 82 mm 900 ACE™ Turbo R : 74 mm
Stroke	850 E-TEC® : 80.4 mm 900 ACE™ Turbo R : 69.7 mm
Maximum engine speed	7,900 RPM
Carburation	850 E-TEC® : Electronic Direct Injection with additional booster injectors 900 ACE™ Turbo R : EFI
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	37 L
Oil tank capacity (2-stroke)	3.4 L

Power Train
Drive clutch type	850 E-TEC® : pDrive™ with clickers 900 ACE™ Turbo R : pDrive™
Driven clutch type	QRS
Brake system	Brembo 4-Piston with adjustable lever

Dimensions
Vehicle Overall Length	3250 mm
Vehicle Overall Width	1200 mm
Vehicle Overall Height	1245 mm
Ski Stance	996 mm
Track Length x Width x Profile	PowderMax†: 3923 x 381 x 64

Suspensions
Front suspension	LFS+ with arched lower A-Arms
Front shock	KYB PRO 36 EA-3 R Kashima
Rear suspension	PPS²-DS+
Center shock	KYB 46 Plus Kashima
Rear shock	KYB PRO 46 EA-3 R Kashima

Feature
Frame	Radien²
Skis	Blade DS+
Seating	Sport, 1-up
Handlebar	U-type aluminium with hooks, low grab handle
Riser block height	120 mm
Starter	Electric (900 ACE Turbo R) Electric and manual (850 E-TEC)
Reverse	Electromechanical (900 ACE Turbo R) RER™ (850 E-TEC)
Heated throttle lever	Standard
Heated grips	Standard
Gauge	10.25 in. Touchscreen Display
Windshield	Low
Visor Plug front / rear	Front
12V power outlet	Yes, in front compartment

2027

COMMANDER RE

On & Off Trail
Recreation Utility
Deep Snow
Family Fun

Rotax® 900 ACE Turbo R engine
EasyRide+ rear suspension
KYB PRO 36 EA-3 R Kashima / KYB PRO 46 EA-3 Kashima / KYB PRO 46 EA-3 R Kashima shocks
44 mm PowderMax† track
Premium LED headlights, Flippable snowguard, four-piston brake, adjustable brake lever, 10.25" Touchscreen Display

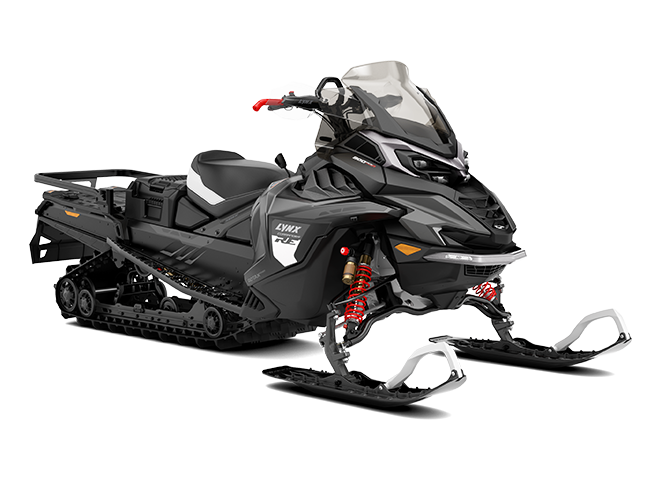

COMMANDER RE

The Commander RE is a power-oozing crossover snowmobile excelling on trails, deep snow, and towing. The EasyRide+ rear suspension, quick-adjustable KYB PRO EA-3 Kashima shocks, and 180 hp Rotax® 900 ACE Turbo R engine deliver outstanding performance.

Engine

Rotax® 900 ACE Turbo R
Rear suspension

EasyRide+ with adjustment,KYB PRO 46 EA-3 Kashima & KYB PRO 46 EA-3 R Kashima shocks
Front suspension

LFS+ (arched lower A-arms),996 mm ski stance,KYB PRO 36 EA-3 R Kashima shocks
Track

PowderMax† 500 x 3 923 x 44 mm
Special features

Premium LED headlights, Flippable snowguard, Hitch, Modular seat with heating, four-piston brake, adjustable brake lever, rail reinforcements, air radiator with fan, 10.25" Touchscreen Display, iTC-system

Download spec sheet

Engine
Engine	900 ACE Turbo R
Engine details	900 ACE Turbo R™ : Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders	3
Cylinders & Displacement	899 cc
Bore	74 mm
Stroke	69.7 mm
Maximum engine speed	7,900 RPM
Carburation	EFI
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	42 L

Power Train
Drive clutch type	900 ACE™ Turbo R : pDrive™
Driven clutch type	QRS
Brake system	Brembo 4-Piston with adjustable lever

Dimensions
Vehicle Overall Length	3245 mm
Vehicle Overall Width	1200 mm
Vehicle Overall Height	1280 mm
Ski Stance	996 mm
Track Length x Width x Profile	PowderMax†: 3923 x 500 x 44 mm

Suspensions
Front suspension	LFS+ with arched lower A-Arms
Front shock	KYB PRO 36 EA-3 R Kashima
Rear suspension	EasyRide+ with adjustment
Center shock	KYB PRO 46 EA-3 Kashima
Rear shock	KYB PRO 46 EA-3 R Kashima

Feature
Frame	Radien²
Skis	Blade DS+
Seating	Wide Track, 1-up heated
Handlebar	U-type steel with hooks, low grab handle
Riser block height	145 mm
Starter	Electric
Reverse	Electromechanical
Heated throttle lever	Standard
Heated grips	Standard
Gauge	10.25 in. Touchscreen Display
Windshield	Medium with side deflectors
Hitch	Standard
Visor Plug front / rear	Front
12V power outlet	Yes, in front compartment

2027

COMMANDER LIMITED

On & Off Trail
Recreation Utility
Deep Snow
Family Fun

Rotax® 900 ACE, 900 ACE Turbo and 900 ACE Turbo R engines
EasyRide+ rear suspension
KYB 36 Plus and KYB 46 Plus Kashima shocks
44 mm PowderMax† track /38 mm Ice Crosscut studded track (Touring kit)
Premium LED headlights, Flippable snowguard, 7.2" Digital Display (900 ACE) or 10.25" Touchscreen Display (900 ACE Turbo & Turbo R), optional Touring kit (1097 mm ski stance, heated 1+1 seat, passenger footrests, studded track)

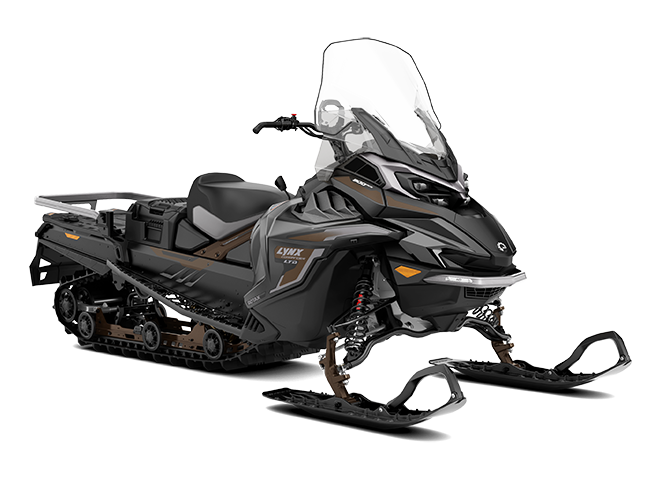

COMMANDER LIMITED

The market’s most versatile crossover gains even more power with the 180 hp Rotax® 900 ACE Turbo R engine option. KYB / KYB 46 Kashima shocks ensure a premium ride, while the optional Touring Kit with a wide ski stance transforms the sled into a luxurious two-up tourer.

Engine

Rotax® 900 ACE,Rotax® 900 ACE Turbo,Rotax® 900 ACE Turbo R
Rear suspension

EasyRide+ with adjustment,KYB 46 Plus Kashima shocks
Front suspension

LFS+ with arched lower A-Arms /,LFS+ (Touring kit),996 mm / 1097 mm (Touring kit) ski stance,KYB 36 Plus shocks / KYB 36 Plus R (Touring kit)
Track

PowderMax† 500 x 3 923 x 44 mm / Ice Crosscut studded 500 x 3923 x 38 mm (Touring kit)
Special features

Premium LED headlights, Flippable snowguard, Hitch, Modular seat with heating, air radiator with fan, 7.2" Digital Display (900 ACE) or 10.25" Touchscreen Display (900 ACE Turbo & Turbo R), iTC-system, optional Touring kit (heated 1+1 seat, 1097 mm ski stance, passenger footrests, studded track)

Download spec sheet

Engine
Engine	900 ACE 900 ACE Turbo 900 ACE Turbo R
Engine details	900 ACE™ : Liquid-cooled, four-stroke D.O.H.C. 900 ACE™ Turbo : Liquid-cooled, four-stroke D.O.H.C., turbocharged 900 ACE™ Turbo R : Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders	3
Cylinders & Displacement	899 cc
Bore	74 mm
Stroke	69.7 mm
Maximum engine speed	900 ACE™ : 7,250 RPM 900 ACE™ Turbo : 7,750 RPM 900 ACE™ Turbo R : 7,900 RPM
Carburation	EFI
Recommended fuel type	Unleaded
Minimum octane	95
Fuel tank	42 L

Power Train
Drive clutch type	900 ACE™ : pDrive™ with slider shoes 900 ACE™ Turbo : pDrive™ 900 ACE™ Turbo R : pDrive™
Driven clutch type	QRS
Brake system	Brembo

Dimensions
Vehicle Overall Length	3245 mm
Vehicle Overall Width	1200 mm 1280 mm (Touring kit)
Vehicle Overall Height	1480 mm
Ski Stance	996 mm 1097 mm (Touring kit)
Track Length x Width x Profile	PowderMax†: 3923 x 500 x 44 mm Ice Crosscut studded: 3923 x 500 x 38 mm (Touring kit)

Suspensions
Front suspension	LFS+ with arched lower A-Arms LFS+ (Touring kit)
Front shock	KYB 36 Plus KYB 36 Plus R (Touring kit)
Rear suspension	Articulated EasyRide+ with adjustment
Center shock	KYB 46 Plus Kashima
Rear shock	KYB 46 Plus Kashima

Feature
Frame	Radien²
Skis	Blade DS+
Seating	Wide Track, 1-up or 2-up heated
Handlebar	U-type steel with hooks, low grab handle
Riser block height	145 mm
Starter	Electric
Reverse	Electromechanical
Heated throttle lever	Standard (driver and passenger)
Heated grips	Standard (driver and passenger)
Gauge	900 ACE™ : 7.2 in. Digital Display 900 ACE™ Turbo : 10.25 in. Touchscreen Display 900 ACE™ Turbo R : 10.25 in. Touchscreen Display
Windshield	Ultra-high with side deflectors
Hitch	Standard
Visor Plug front / rear	Front Front and rear (Touring kit)
12V power outlet	Yes, in front compartment

2027

ADVENTURE ELECTRIC

Family Fun
Trail

ROTAX E-POWER
Revised SC-5 (3050) / SC-5M (3500) rear suspension
Motion Control and KYB 36 shocks
19 mm High-Efficiency track (3050) / 32 mm Ripsaw track (3500)
LED headlights, 10.25" Touchscreen Display

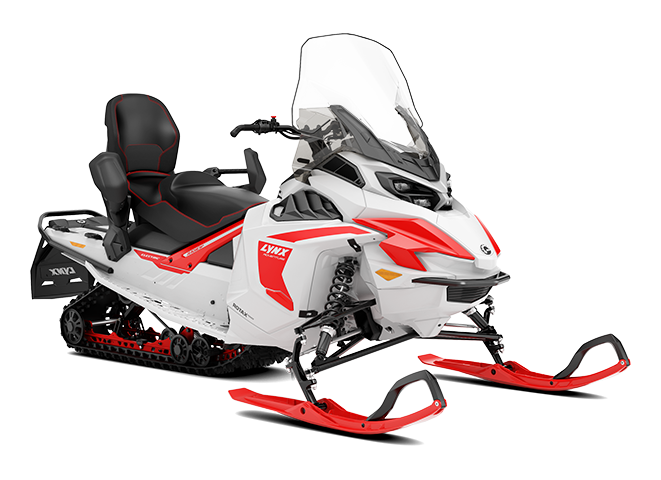

ADVENTURE ELECTRIC

The first fully electric Lynx snowmobile. The Lynx Adventure Electric offers a new way to experience winter without smoke and engine noise. The Rotax® E-Power electric engine enables a range of up to 50 kilometers*. *With 3500 mm long track range of up to 30 km"

Engine

ROTAX E-POWER
Rear suspension

Revised SC-5, Motion Control & KYB 36 shocks
Front suspension

LFS+, 1097 mm ski stance, Motion Control shocks
Track

High-Efficiency 356 x 3048 x 19 mm (3050) / Ripsaw 381 x 3489 x 32 mm (3500)
Special features

LED headlights, 10.25" Touchscreen Display, Learning Key, 2-up seat

Download spec sheet

Engine
Engine	E-POWER

Power Train
Brake system	Brembo

Dimensions
Vehicle Overall Length	2940 mm (3050) 3060 mm (3500)
Vehicle Overall Width	1250 mm
Vehicle Overall Height	1470 mm
Ski Stance	1097 mm
Track Length x Width x Profile	High-Effciency: 3048 x 356 x 19 mm Ripsaw†: 3489 x 381 x 32 mm

Suspensions
Front suspension	LFS+
Front shock	Motion Control
Rear suspension	Revised SC-5 (3050) SC-5M (3500)
Center shock	Motion Control
Rear shock	KYB 36

Feature
Frame	Radien²
Skis	Pilot™ 5.7 SLT
Seating	2-up
Handlebar	Straight steel with hooks
Riser block height	120 mm
Starter	Electric
Reverse	Yes
Heated throttle lever	Standard
Heated grips	Standard
Gauge	10.25 in. Touchscreen Display
Windshield	Ultra-high with side deflectors
Visor Plug front / rear	Front
12V power outlet	Yes, in front compartment
