Lynx 49 Ranger
LEADING VERSATILITY

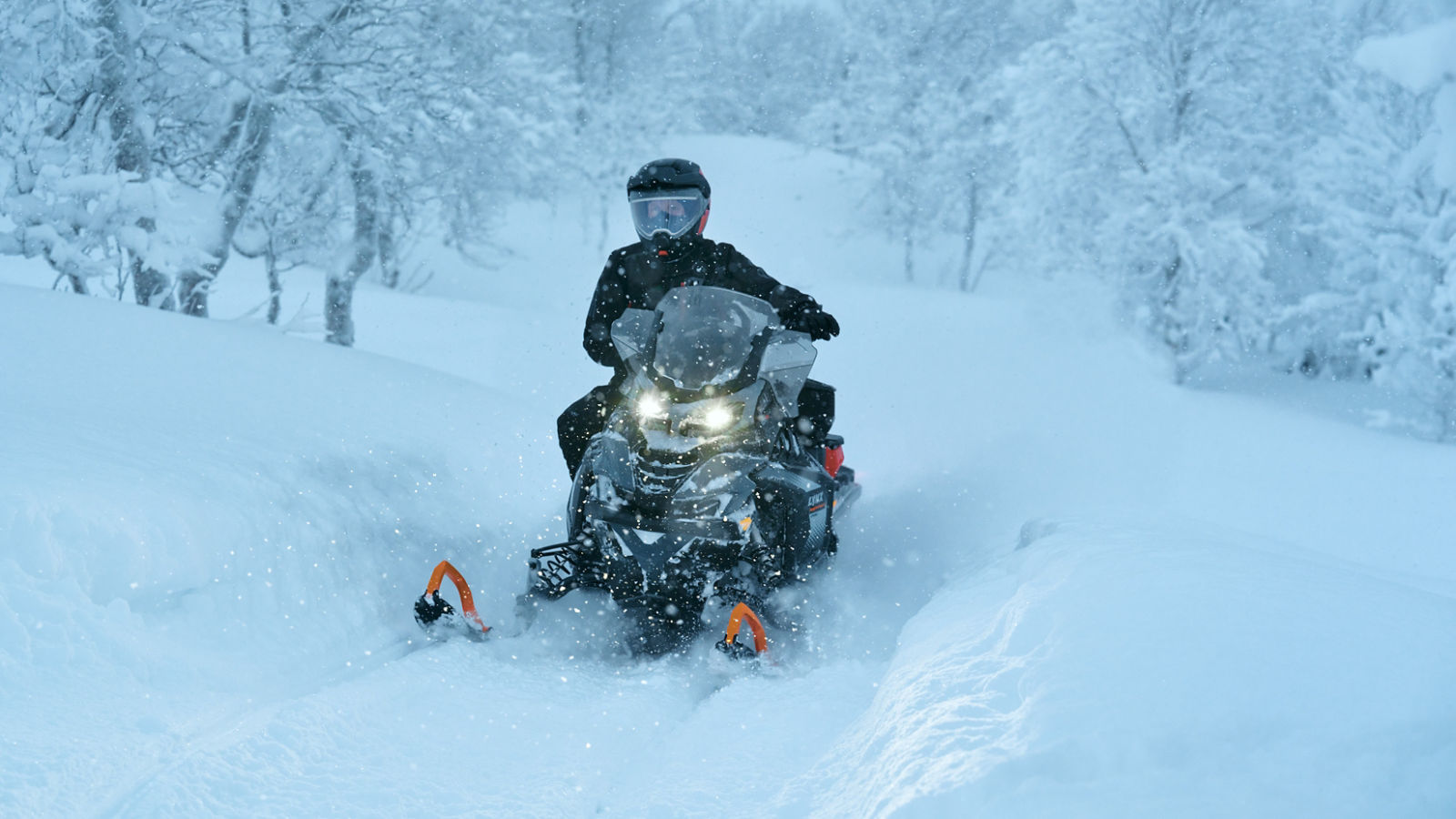

Light utility snowmobile for unforgiving terrain
The 49 Ranger is a feature-rich light-utility snowmobile for a rider looking for the best combination of versatility and affordability.
Key features
Explore 49 Ranger Packages & Specifications
-

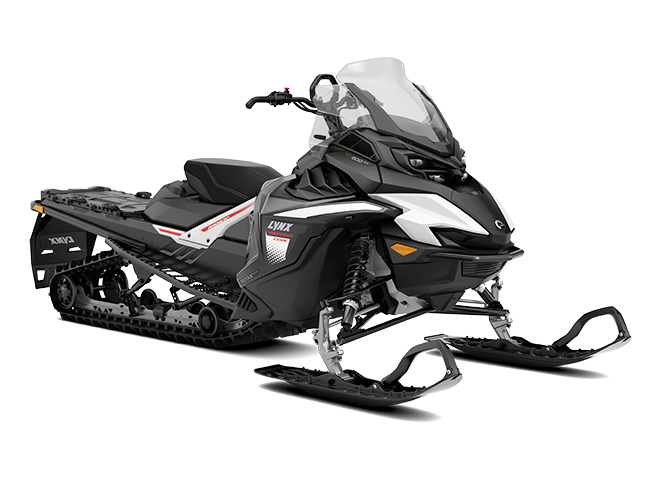

202749 RANGER CORE
-
Deep snow
- On & Off Trail
- Recreation Utility
- Rotax® 600 ACE and 600 EFI engines
- PPS² DS+ rear suspension
- KYB 36 shocks
- 38 mm Charger track
- LED headlights
![/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-49-Ranger-Core-600-ACE-White-Black-Studio-34FRT-EMEA.png]()
![bright-white---deep-black]()
The Lynx 49 Ranger Core snowmobile offers full light-utility sled features with an affordable price. New Radien² platform, PPS² DS+ rear suspension, and long track ensure great off trail capability and easy maneuverability. Available with Rotax® 600 ACE four-stroke or 600 EFI two-stroke engines.
-
Engine
Rotax® 600 ACE, Rotax® 600 EFI
-
Rear suspension
PPS² DS+, KYB 36 shocks
-
Front suspension
LFS+, 996 mm ski stance, KYB 36 shocks
-
Track
Charger 406 x 3923 x 38 mm
-
Special features
LED headlights, Heavy-duty rear bumper, air radiator with fan, iTC-system (600 ACE)
Engine Engine - 600 ACE
600 EFI - 85 Hp
Engine details - 600 ACE™ : Liquid-cooled, four-stroke D.O.H.C.
600 EFI - 85 Hp : Liquid-cooled, two-stroke
Cylinders - 600 ACE™ : 2
600 EFI - 85 Hp : 2
Cylinders & Displacement - 600 ACE™ : 599.5 cc
600 EFI - 85 Hp : 599.4 cc
Bore - 600 ACE™ : 74 mm
600 EFI - 85 Hp : 72.3 mm
Stroke - 600 ACE™ : 69.7 mm
600 EFI - 85 Hp : 73 mm
Maximum engine speed - 600 ACE™ : 7,250 RPM
600 EFI - 85 Hp : 7,500 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 L
Oil tank capacity (2-stroke) - 3,4 L
Power Train Drive clutch type - 600 ACE™ : eDrive ll
600 EFI : pDrive™
Driven clutch type - QRS
Brake system - Brembo
Dimensions Vehicle Overall Length - 3280 mm
Vehicle Overall Width - 1200 mm
Vehicle Overall Height - 1310 mm
Ski Stance - 996 mm
Track Length x Width x Profile - Charger:
3923 x 406 x 38 mm
Suspensions Front suspension - LFS+
Front shock - KYB 36
Rear suspension - PPS²-DS+
Center shock - KYB 36
Rear shock - KYB 36
Feature Frame - Radien²
Skis - Blade DS+
Seating - Sport, 1-up
Handlebar - U-type steel with hooks
Riser block height - 145 mm
Starter - Electric and manual (600 EFI)
Electric (600 ACE)
Reverse - RER™ (600 EFI)
Mechanical (600 ACE™)
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5 in. Digital Display
Windshield - Medium with side deflectors
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
-

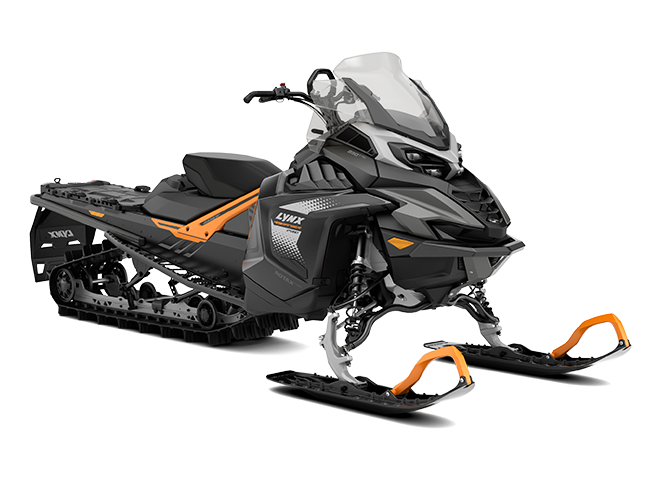

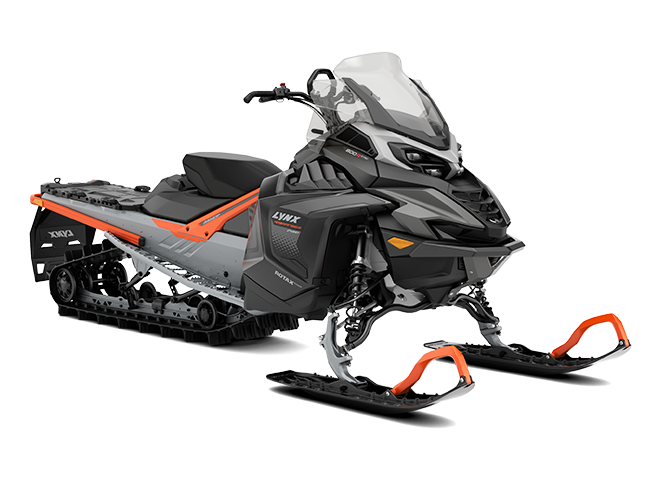

202749 RANGER PRO
-
Deep snow
- Steep and deep
- On & Off Trail
- Recreation Utility
- Rotax® 850 E-TEC and 600RR E-TEC engines
- PPS² DS+ rear suspension
- KYB 36 shocks
- 64 mm PowderMax† track
- Silent-Stop and Smart ECO mode (600RR), Premium LED headlights, 7.2" gauge
![/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-49-Ranger-PRO-850-E-TEC-Tactical-Grey-Orange-Crush-Studio-34FRT-EMEA.png]()
![tactical-grey---orange-crush]()
The virtuoso of the Nordic terrain. With the slim Radien² platform and PPS² DS+ rear suspension, the 49 Ranger PRO offers unseen agility and deep snow capability in its class. Rotax® 850 / 600RR E-TEC engines ensure endless performance and instant throttle response in any conditions.
-
Engine
Rotax® 850 E-TEC, Rotax® 600RR E-TEC
-
Rear suspension
PPS² DS+, KYB 36 shocks
-
Front suspension
LFS+ (arched lower A-arms), 921 mm ski stance, KYB 36 shocks
-
Track
PowderMax† 406 x 3923 x 64 mm
-
Special features
Silent-Stop and Smart ECO mode (600RR), Premium LED headlights, heated seat, air radiator with fan, 7.2" gauge, Explorer² Front Bumper, heavy-duty rear bumper, hitch
Engine Engine - 850 E-TEC
600RR E-TEC
Engine details - 600RR E-TEC® : Liquid-cooled, two-stroke, 3-D RAVE™
850 E-TEC® : Liquid-cooled, two-stroke, 3-D R.A.V.E.™
Cylinders - 600RR E-TEC®: 2
850 E-TEC®: 2
Cylinders & Displacement - 600RR E-TEC®: 599.4 cc
850 E-TEC®: 849 cc
Bore - 600RR E-TEC® : 72.3 mm
850 E-TEC® : 82 mm
Stroke - 600RR E-TEC® : 73 mm
850 E-TEC® : 80.4 mm
Maximum engine speed - 600RR E-TEC® : 8,250 RPM
850 E-TEC® : 7,900 RPM
Carburation - 600RR E-TEC® : Electronic Direct injection with additional booster injectors
850 E-TEC® : Electronic Direct Injection with additional booster injectors
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 L
Oil tank capacity (2-stroke) - 3,4 L
Power Train Drive clutch type - 600RR E-TEC® : pDrive™ with clickers
850 E-TEC® : pDrive™ with clickers
Driven clutch type - QRS
Brake system - Brembo
Dimensions Vehicle Overall Length - 3385 mm
Vehicle Overall Width - 1120 mm
Vehicle Overall Height - 1320 mm
Ski Stance - 921 mm
Track Length x Width x Profile - PowderMax†:
3923 x 406 x 64 mm
Suspensions Front suspension - LFS+ with curved lower A-Arms
Front shock - KYB 36
Rear suspension - PPS²-DS+
Center shock - KYB 36
Rear shock - KYB 36
Feature Frame - Radien²
Skis - Blade DS+
Seating - Sport, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric and manual
Reverse - RER™
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2 in. Digital Display
Windshield - Medium with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
Download spec sheet
