Lynx 59 Ranger
REFINED TO PERFECTION
Refined ergonomics. Light and precise handling. Lighting power you can rely on. The new Radien² design makes the 59 Ranger more striking – and stronger than ever.
Key features
Explore 59 Ranger Packages & Specifications
-
202759 RANGER ALPINE
-
Heavy Duty Work
- Recreation Utility
- On & Off Trail
- Deep snow
- Rotax® 900 ACE engine
- EasyRide+ rear suspension
- KYB 36 shocks
- 38 mm Ice Crosscut studded track
- Modular seat with heating, 7.2" gauge, 2F/N/R gearbox with push-button reverse, readiness for Alpine accessories
![/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-59-Ranger-Alpine-900-ACE-White-Orange-Black-Studio-34FRT-EMEA.png]()
![bright-white---orange-crush]()
A specialist for demanding utility tasks. The 59 Ranger Alpine is a wide-track utility snowmobile with generous standard equipment and torqueful Rotax® 900 ACE four-stroke engine. A range of original Lynx plug&play accessories designed for ski resort use is available.
-
Engine
Rotax® 900 ACE
-
Rear suspension
EasyRide+ with adjustment and extension lock, KYB 36 shocks
-
Front suspension
LFS, 1080 mm ski stance, KYB 36 shocks
-
Track
Ice Crosscut studded 500 x 3923 x 38 mm
-
Special features
Hitch, Modular seat with heating, air radiator with fan, 7.2" gauge, 2F/N/R gearbox with push-button reverse, iTC system, readiness for Alpine accessories
Engine Engine - 900 ACE
Engine details - 900 ACE™ : Liquid-cooled, four-stroke D.O.H.C.
Cylinders - 3
Cylinders & Displacement - 899 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7,250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 L
Power Train Drive clutch type - 900 ACE™ : pDrive™ with slider shoes
Driven clutch type - QRS
Brake system - Brembo
Dimensions Vehicle Overall Length - 3240 mm
Vehicle Overall Width - 1280 mm
Vehicle Overall Height - 1470 mm
Ski Stance - 1080 mm
Track Length x Width x Profile - Ice Crosscut studded:
3923 x 500 x 38 mm
Suspensions Front suspension - LFS
Front shock - KYB 36
Rear suspension - Articulated EasyRide+ with adjustment & extension lock
Center shock - KYB 36
Rear shock - KYB 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Wide Track, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2 in. Digital Display
Windshield - Ultra-high with side deflectors & mirrors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
-

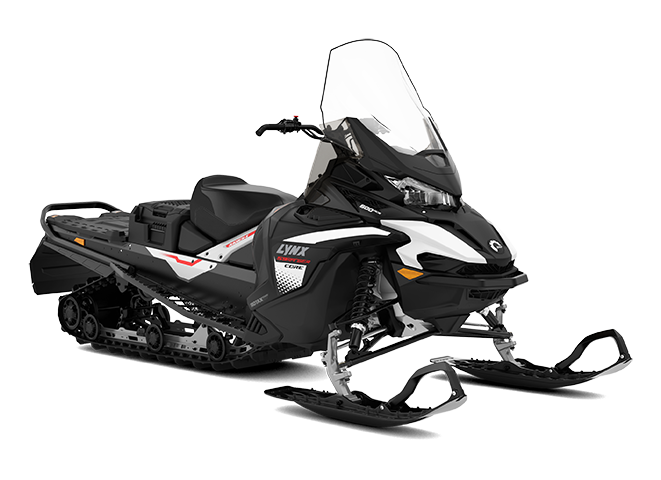

202759 RANGER CORE
-
Recreation Utility
- On & Off Trail
- Deep snow
- Family Fun
- Rotax® 600 ACE and Rotax® 600 EFI engines
- EasyRide+ rear suspension
- KYB 36 shocks
- 38 mm Crosscut track
- LED headlights, Flippable snowguard
![/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-59-Ranger-Core-600-ACE-White-Black-Studio-34FRT-EMEA.png]()
![bright-white---deep-black]()
A versatile wide-track snowmobile for leisure and winter chores. The renewed 59 Ranger Core snowmobile features the Radien² design which provides superb handling and ergonomics, and a capable EasyRide+ rear suspension for a comfortable ride. Powered by torquey and fuel-efficient Rotax® 600 ACE / EFI engines.
-
Engine
Rotax® 600 ACE, Rotax® 600 EFI
-
Rear suspension
EasyRide+, KYB 36 shocks
-
Front suspension
LFS+, 996 mm ski stance, KYB 36 shocks
-
Track
Crosscut 500 x 3923 x 38 mm
-
Special features
LED headlights, Flippable snowguard, Air radiator with fan, iTC-system (600 ACE)
Engine Engine - 600 ACE
600 EFI - 85 Hp
Engine details - 600 ACE™ : Liquid-cooled, four-stroke D.O.H.C.
600 EFI - 85 Hp : Liquid-cooled, two-stroke
Cylinders - 600 ACE™ : 2
600 EFI - 85 Hp: 2
Cylinders & Displacement - 600 ACE™ : 599.5 cc
600 EFI - 85 Hp: 599.4 cc
Bore - 600 ACE™ : 74 mm
600 EFI - 85 Hp : 72.3 mm
Stroke - 600 ACE™ : 69.7 mm
600 EFI - 85 Hp : 73 mm
Maximum engine speed - 600 ACE™ : 7,250 RPM
600 EFI - 85 Hp : 7,500 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 L
Oil tank capacity (2-stroke) - 3,4 L
Power Train Drive clutch type - 600 ACE™ : eDrive II
600 EFI - 85 Hp : pDrive™
Driven clutch type - QRS
Brake system - Brembo
Dimensions Vehicle Overall Length - 3240 mm
Vehicle Overall Width - 1200 mm
Vehicle Overall Height - 1500 mm
Ski Stance - 996 mm
Track Length x Width x Profile - Crosscut
500 x 3923 x 38 mm
Suspensions Front suspension - LFS+
Front shock - KYB 36
Rear suspension - EasyRide+
Center shock - KYB 36
Rear shock - KYB 36
Feature Frame - Radien²
Skis - Blade DS+
Seating - Wide Track, 1-up
Handlebar - U-type steel with hooks
Riser block height - 145 mm
Starter - Electric and manual (600 EFI)
Electric (600 ACE)
Reverse - RER™ (600 EFI)
Electromechanical (600 ACE™)
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5 in. Digital Display
Windshield - Ultra-high with side deflectors
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
-

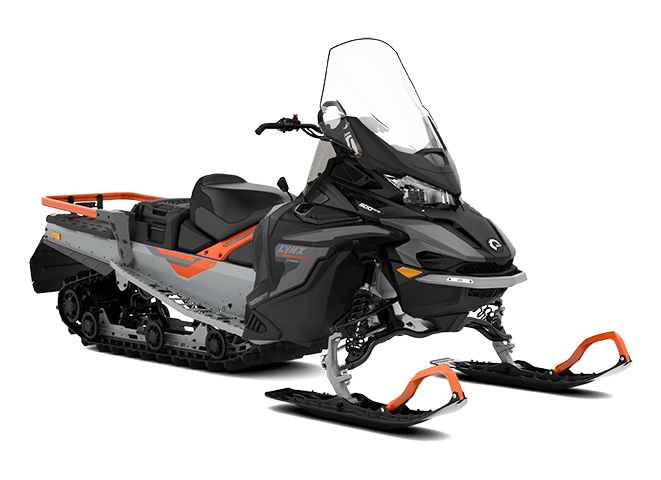

202759 RANGER PRO
-
Recreation Utility
- On & Off Trail
- Deep snow
- Family Fun
- Rotax® 600 ACE engine
- EasyRide+ rear suspension
- KYB 36 shocks
- 44 mm PowderMax -telamatto
- Premium LED headlights, Flippable snowguard, modular seat with heating, 7.2" gauge, 2F/N/R gearbox with push-button reverse
![/content/dam/global/emea/lynx/my27/vehicle-lineup/LYNX-MY27-59-Ranger-PRO-600-ACE-Tactical-Grey-Orange-Crush-Studio-34FRT-EMEA.png]()
![tactical-grey---orange-crush]()
The renewed 59 Ranger PRO utility snowmobile offers performance and value for work and pleasure. The unique EasyRide+ articulated rear suspension, 2F/N/R gearbox, and the torquey and fuel-efficient Rotax® 600 ACE engine, are examples of the great utility features of this snowmobile.
-
Engine
Rotax® 600 ACE
-
Rear suspension
EasyRide+ with adjustment, KYB 36 shocks
-
Front suspension
LFS+ (arched lower A-arms), 996 mm ski stance, KYB 36 shocks
-
Track
PowderMax 500 x 3923 x 44 mm
-
Special features
Premium LED headlights, Flippable snowguard, modular seat with heating, air radiator with fan, 7.2" gauge, 2F/N/R gearbox with push-button reverse, heavy-duty front bumper, hitch, iTC system
Engine Engine - 600 ACE
Engine details - 600 ACE™ : Liquid-cooled, four-stroke D.O.H.C.
Cylinders - 2
Cylinders & Displacement - 599.5 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7,250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 L
Power Train Drive clutch type - 600 ACE™ : eDrive II
Driven clutch type - QRS
Brake system - Brembo
Dimensions Vehicle Overall Length - 3240 mm
Vehicle Overall Width - 1200 mm
Vehicle Overall Height - 1500 mm
Ski Stance - 996 mm
Track Length x Width x Profile - PowderMax†:
3923 x 500 x 44 mm
Suspensions Front suspension - LFS+ with curved lower A-Arms
Front shock - KYB 36
Rear suspension - Articulated EasyRide+ with adjustment
Center shock - KYB 36
Rear shock - KYB 36
Feature Frame - Radien²
Skis - Blade DS+
Seating - Wide Track, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2 in. Digital Display
Windshield - Ultra-high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
Download spec sheet
