202259 RANGER 600 ACE
-
On & Off Trail
- Deep snow
- Recreation Utility
- Family Fun
- Rotax 600 ACE engine, 62 horsepower
- EasyRide rear suspension / LFS front suspension
- HPG 36 shocks
- 996 mm ski stance
- 500 x 3923 x 44 mm track
![/content/dam/global/en/lynx/my22/vehicle-line-up/59-ranger/59-ranger/Studio/3-4view/LYNX-MY22-59-Ranger-600-ACE-Black-Studio-34FRT-SDW-RGB.png]()
![viper-red---black]()
This wide track snowmobile offers performance and value for work and pleasure. The unique EasyRide articulated rear suspension, 2F/N/R gearbox, and the torqueful and fuel-efficient Rotax 600 ACE engine, are examples of the utility features of this snowmobile.
-
Engine
Rotax 600 ACE
-
Rear suspension
EasyRide rear suspension with adjustment, HPG 36 shocks
-
Front suspension
LFS front suspension, 996 mm ski stance, HPG 36 shocks
-
Track
500 x 3923 x 44 mm
-
Special features
Multi-LinQ plate, hitch, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 600 ACE
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 2
Cylinders & Displacement - 600 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - eDrive II
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - HPG 36
Rear suspension - EasyRide with adjustment
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5-in. digital display
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Front
-
-

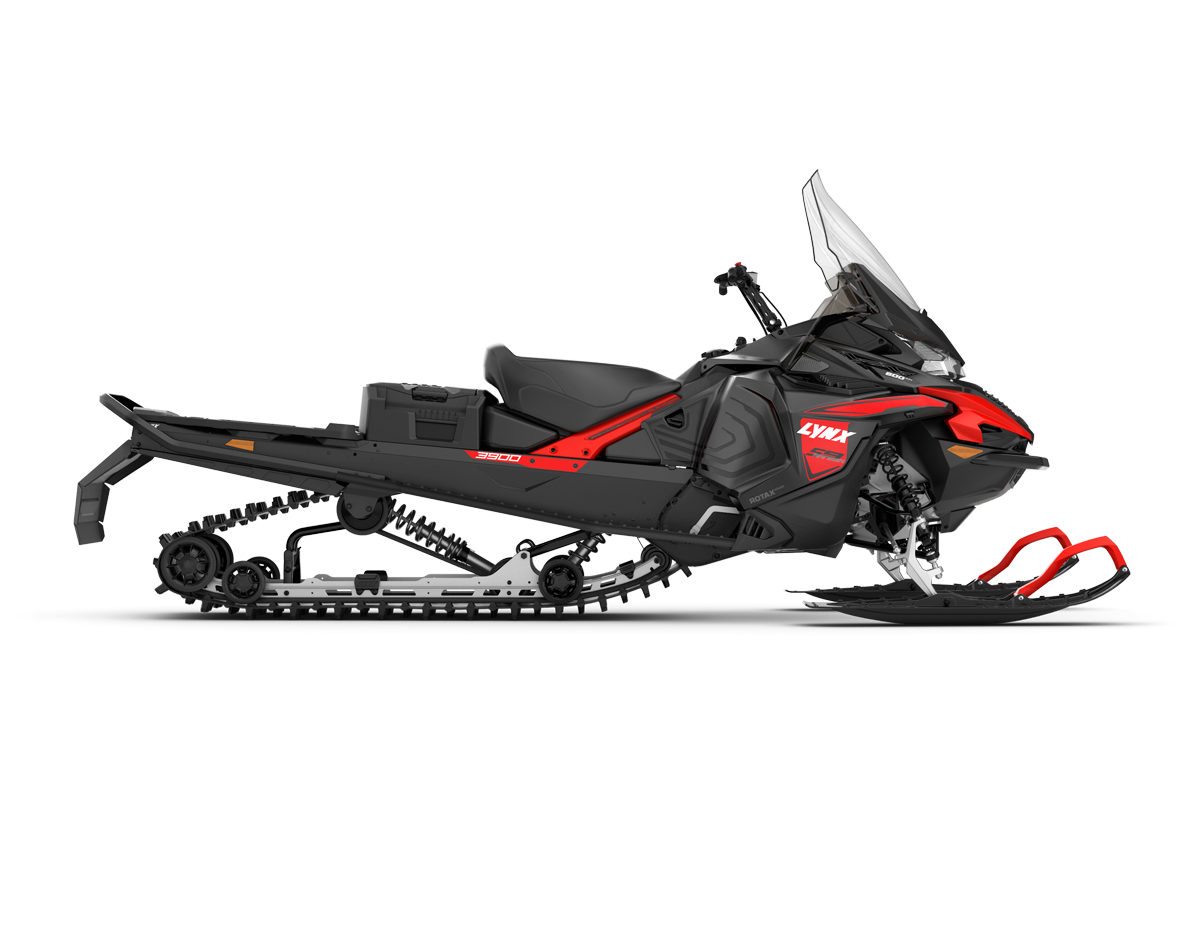

202259 RANGER 600 EFI
-
On & Off Trail
- Deep snow
- Recreation Utility
- Family Fun
- Rotax 600 EFI engine, 85 horsepower
- EasyRide rear suspension / LFS front suspension
- MC and HPG 36 shocks
- 996 mm ski stance
- 500 x 3923 x 38 mm track
![/content/dam/global/en/lynx/my22/vehicle-line-up/59-ranger/59-ranger/Studio/3-4view/LYNX-MY22-59-Ranger-600-EFI-Black-Studio-34FRT-SDW-RGB.png]()
![viper-red---black]()
New kind of versatility for leisure and winter chores. The 59 Ranger snowmobile features a Radien-X chassis which provides with a superb handling and ergonomics, a capable suspension for a comfortable ride, and a torqueful Rotax 600 EFI engine.
-
Engine
Rotax 600 EFI
-
Rear suspension
EasyRide rear suspension, HPG 36 shocks
-
Front suspension
LFS front suspension, 996 mm ski stance, MC shocks
-
Track
500 x 3923 x 38 mm
-
Special features
Multi-LinQ plate, air radiator with fan and Blade DS+ skis
Engine Engine - 600 EFI
Engine details - Liquid-cooled, two-stroke
Cylinders - 2
Cylinders & Displacement - 599.4 cc
Bore - 72.3 mm
Stroke - 73 mm
Maximum engine speed - 7500 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Oil tank capacity (2-stroke) - 3.4 liters
Power Train Drive clutch type - pDrive
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - MC
Rear suspension - EasyRide
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up
Handlebar - U-type steel with hooks
Riser block height - 145 mm
Starter - Electric and manual
Reverse - RER
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5-in. digital display
Windshield - Extra high with side deflectors
-
-
202259 RANGER ALPINE
-
Heavy Duty Work
- Recreation Utility
- On & Off Trail
- Deep snow
- Rotax 900 ACE engine, 95 horsepower
- EasyRide rear suspension / LFS front suspension
- HPG 36 shocks
- 1080 mm ski stance
- 500 x 3923 x 38 mm Cobra studded track
![/content/dam/global/en/lynx/my22/vehicle-line-up/59-ranger/59-ranger-alpine/Studio/3-4view/LYNX-MY22-59-Ranger-Alpine-900-ACE-Black-Studio-34FRT-SDW-RGB.png]()
![white---orange---black]()
A specialist for demanding utility tasks. The completely new 59 Ranger Alpine is a wide-track utility snowmobile with generous standard equipment and torqueful Rotax 900 ACE four-stroke engine. A range of original Lynx plug&play accessories designed for ski resort use is available.
-
Engine
Rotax 900 ACE
-
Rear suspension
EasyRide rear suspension with adjustment and extension lock, HPG 36 shocks
-
Front suspension
LFS front suspension, 1080 mm ski stance, HPG 36 shocks
-
Track
500 x 3923 x 38 mm Cobra studded
-
Special features
Rear rack, hitch, Modular seat with heating, heavy-duty front bumper, 7.2-in. wide digital display, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ ski, iTC system with three driving modes and readiness for Alpine accessories
Engine Engine - 900 ACE
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive with slider shoes
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - HPG 36
Rear suspension - EasyRide with adjustment and extension lock
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Front
-
