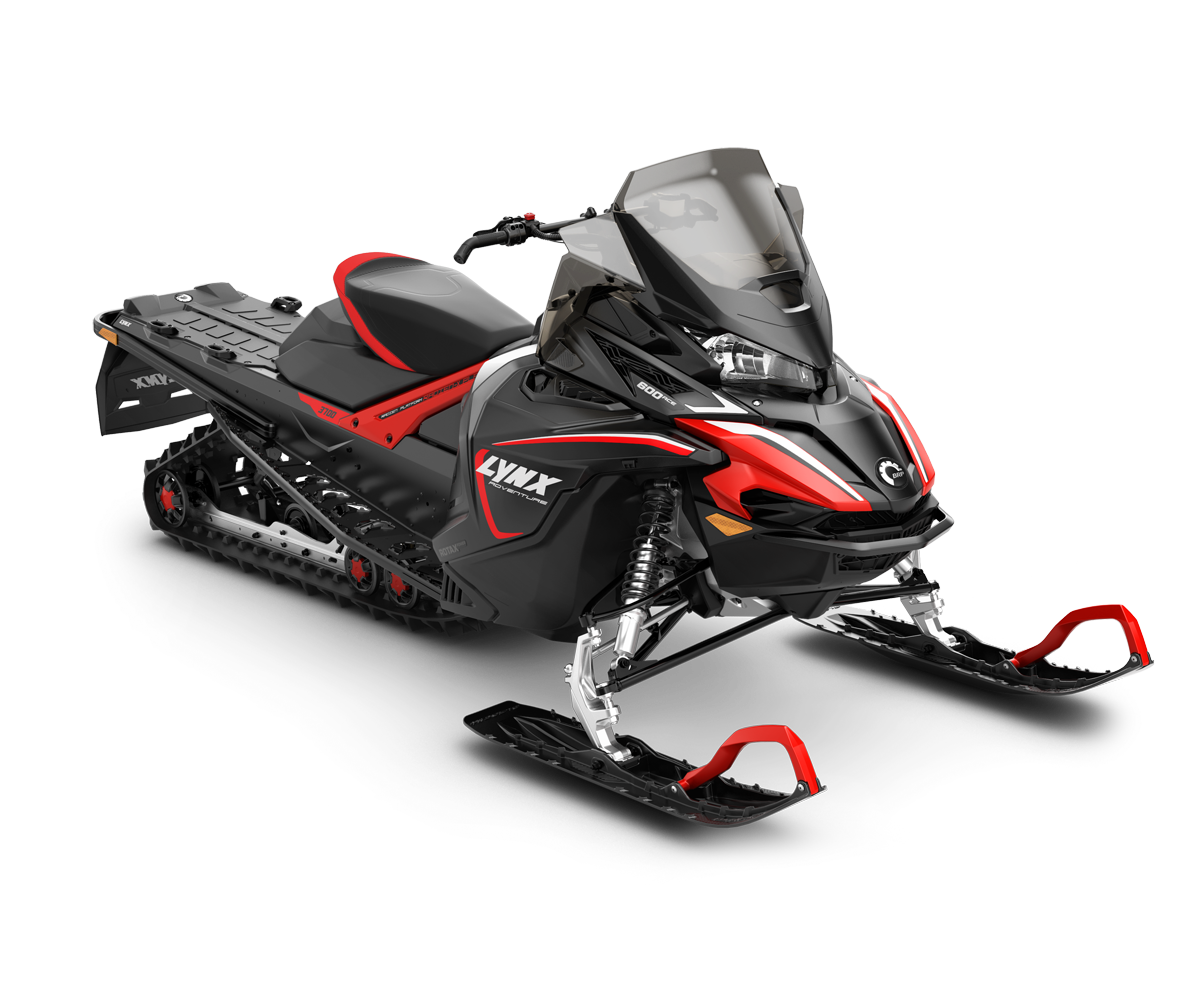

2022ADVENTURE
-
Trail
- On & Off Trail
- Family Fun
- Rotax 600 ACE engine, 62 horsepower
- PPS² -3700 rear suspension / LFS front suspension
- HPG 36 shocks
- 996 mm ski stance
- 406 x 3705 x 39 mm DSG track
![/content/dam/global/en/lynx/my22/vehicle-line-up/Adventure/adventure/Studio/3-4view/LYNX-MY22-Adventure-600-ACE-Black-Studio-34FRT-SDW-RGB.png]()
![viper-red---black]()
For cheery winter trips. The Lynx Adventure is a snowmobile that makes traveling as smooth and comfortable as possible. With the Radien-X chassis and PPS² rear suspension, handling and riding comfort are of top notch quality. The quiet and fuel-efficient Rotax 600 ACE engine perfects the joy of riding.
-
Engine
Rotax 600 ACE
-
Rear suspension
PPS² -3700 rear suspension, HPG 36 shocks
-
Front suspension
LFS front suspension, 996 mm ski stance, HPG 36 shocks
-
Track
DSG 406 x 3705 x 39 mm
-
Special features
Medium windshield, heavy-duty rear bumper, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 600 ACE
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 2
Cylinders & Displacement - 600 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 liters
Power Train Drive clutch type - eDrive II
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - HPG 36
Rear suspension - PPS²-3700
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Sport, 1-up
Handlebar - Straight steel with hooks
Riser block height - 120 mm
Starter - Electric
Reverse - Mechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5-in. digital display
Windshield - Medium with side deflectors
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
-

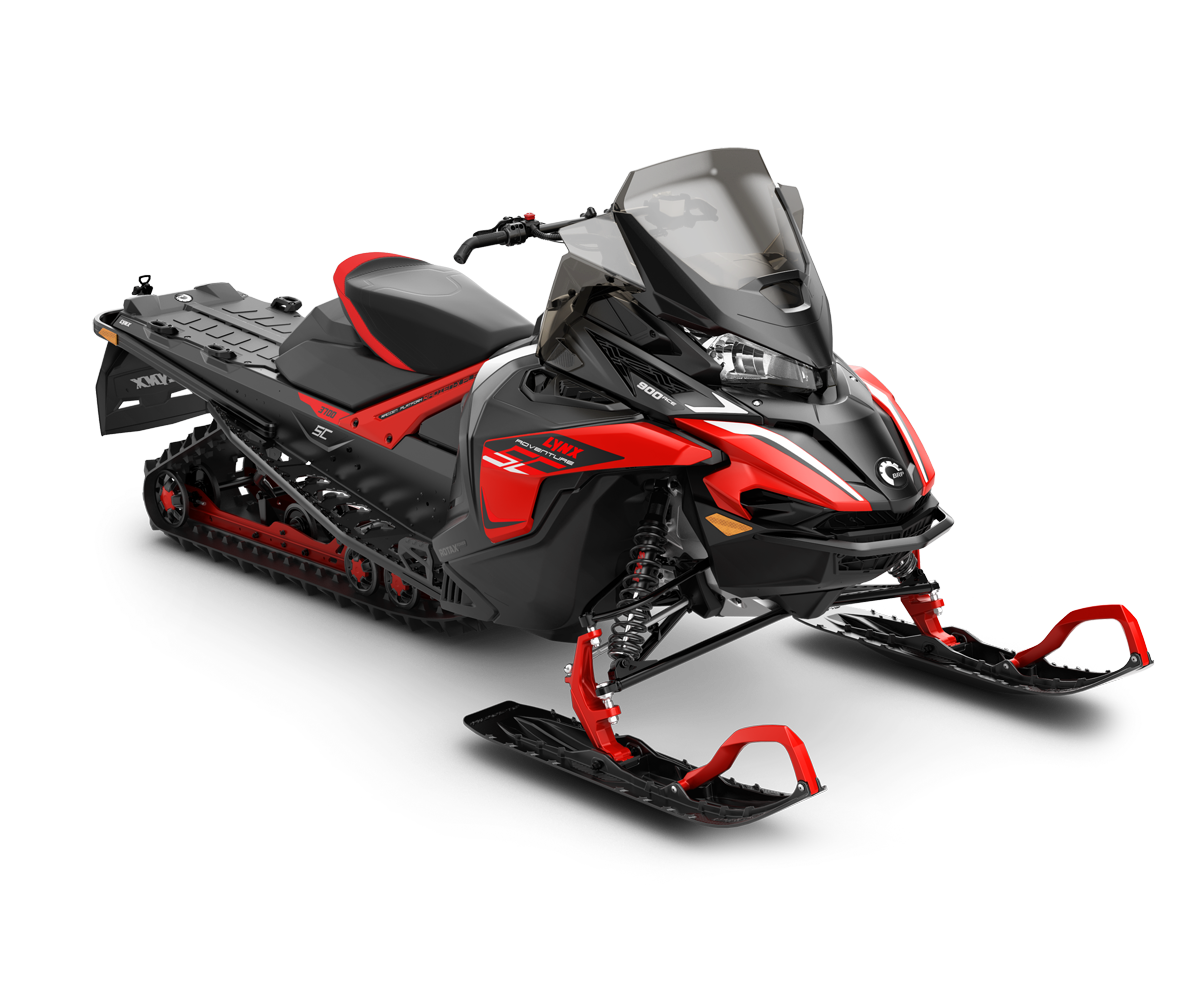

2022ADVENTURE SC
-
Trail
- On & Off Trail
- Family Fun
- Rotax 900 ACE engine, 95 horsepower
- PPS² -3700 rear suspension / LFS front suspension
- KYB 36 and KYB 46 shocks
- 996 mm ski stance
- 406 x 3705 x 39 mm DSG track
![/content/dam/global/en/lynx/my22/vehicle-line-up/Adventure/adventure-sc/Studio/3-4view/LYNX-MY22-Adventure-SC-900-ACE-Black-Studio-34FRT-SDW-RGB.png]()
![viper-red---black]()
Riding pleasure which is close to perfection. The Lynx Adventure SC snowmobile is ideal for relaxed touring, as well as for sporty riding on snowy trails. Quiet, torqueful and powerful Rotax 900 ACE four-stroke engine provides speed and long range.
-
Engine
Rotax 900 ACE
-
Rear suspension
PPS² -3700 rear suspension, KYB 36 & 46 shocks
-
Front suspension
LFS front suspension, 996 mm ski stance, KYB 36 shocks
-
Track
DSG 406 x 3705 x 39 mm
-
Special features
Medium windshield, air radiator with fan, hitch, 7.2-in. wide digital display, heavy-duty rear bumper, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 liters
Power Train Drive clutch type - pDrive with slider shoes
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - KYB 36
Rear suspension - PPS²-3700
Center shock - KYB 36
Rear shock - KYB 46
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Sport, 1-up
Handlebar - Straight steel with hooks
Riser block height - 120 mm
Starter - Electric
Reverse - Mechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Windshield - Medium with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
-

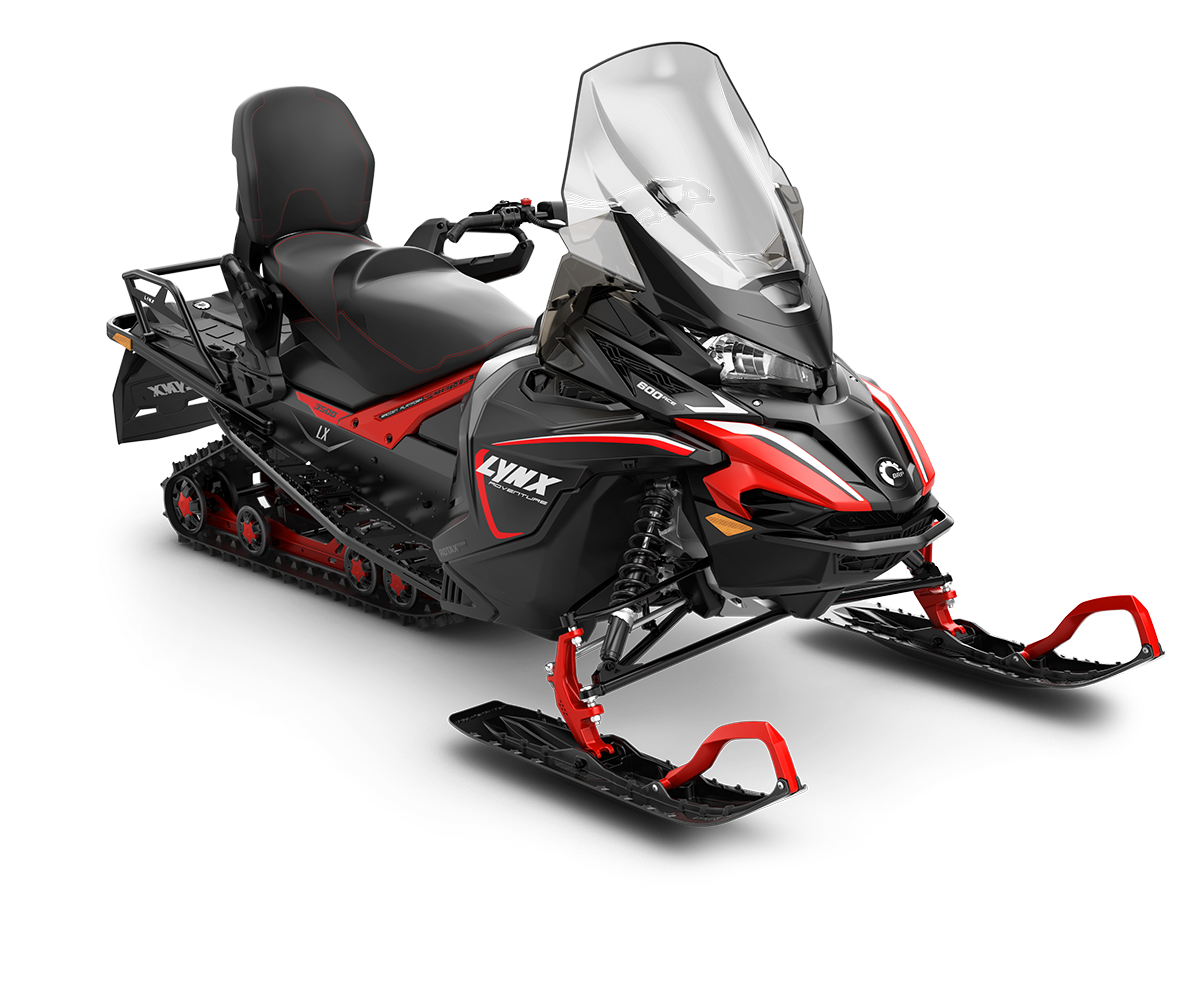

2022ADVENTURE LX
-
Family Fun
- Trail
- Rotax 600 ACE engine, 62 horsepower
- PPS² -3500 rear suspension / LFS front suspension
- HPG 36 shocks
- 1080 mm ski stance
- 381 x 3489 x 34 mm Cobra track
![/content/dam/global/en/lynx/my22/vehicle-line-up/Adventure/adventure-lx/Studio/3-4view/LYNX-MY22-Adventure-LX-600-ACE-Black-Studio-34FRT-SDW-RGB.png]()
![viper-red---black]()
The Lynx Adventure LX snowmobile offers memorable winter adventures for the whole family. In this model, high comfort meets the fuel-efficiency of the quiet Rotax 600 ACE four-stroke engine. The intelligent iTC system provides riding comfort and safety.
-
Engine
Rotax 600 ACE
-
Rear suspension
PPS² -3500 rear suspension, HPG 36 shocks
-
Front suspension
LFS front suspension, 1080 mm ski stance, HPG 36 shocks
-
Track
Cobra 381 x 3489 x 34 mm
-
Special features
Extra high windshield, air radiator with fan, 2-up seat and cargo rail, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 600 ACE
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 2
Cylinders & Displacement - 600 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 37 liters
Power Train Drive clutch type - eDrive II
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - HPG 36
Rear suspension - PPS²-3500
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - 2-up
Handlebar - Steel with hooks
Riser block height - 120 mm
Starter - Electric
Reverse - Mechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5-in. digital display
Windshield - Extra high with side deflectors
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
